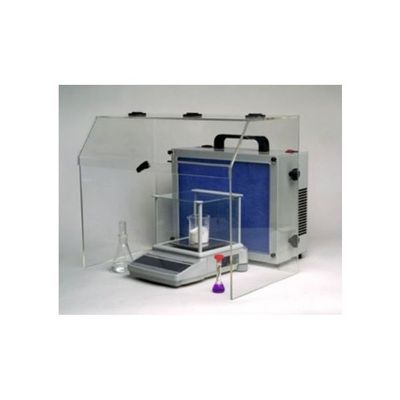

BenchVent - Model BV570H-C or H -Small Desktop Fume Cabinets
Contain and filter for a cleaner, healthier working environment within dental labs, electronic design and rework, pharmaceutical labs, education and more…… For use in numerous situations where external venting is impractical but where contaminant capture and filtration is necessary. Fan/filter casing (steel construction finished in dove grey) – clear PETG plastic fume hood – pre filter – carbon or HEPA filter – radial blower, external rotor motor type brushless, UL, VDE and CSA approved - sealed electrical wiring and switch, downstream of filters – carry handle.
Applications include the filtration of fume, vapour and particulates emanating from: Monomers, adhesives, hazardous powders/particulates, conformal coatings, resins, sealants, solders, light grinding particles and dusts, organic solvents etc. T570H-C (For hydrocarbons) and T570H-H ( For fine particulates).
Demonstrating adequate control of the risks to the health of employees, students and the general public, from dusts,powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (COSHH) regulations 2002 and 2004.
All WS filtration and extraction systems carry a lifetime warranty, are quiet in operation and can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on.
The T570 Hood has a hinged lid to assist, for example, in positioning weigh scales and the like within the hood.
The weighing and handling of potentially harmful powders/particulates, applying adhesives, cleaning solvents, soldering and using small grinding tools etc is carried out within the hood and cleaned air is vented to the right rear of the cabinet.
Comprises of a pre-filter to 15-20 microns followed by a 3.5 kg high grade bonded carbon filter for hydrocarbon (organic solvent, gas) adsorption (BV570H-C). Or alternatively a pre-filter to 15-20 microns with a EPA mini pleat for fine particulate removal to approx 0.3 micron (BV570H-H).
Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced or eliminated.
