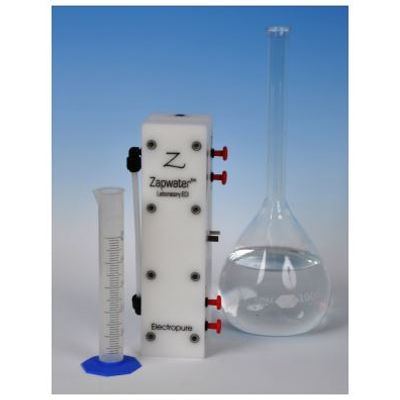

SnowPure Zapwater - Model Zap-10 and Zap-20 -Small Laboratory Electrodeionization Modules
Electropure™ EDI technology has now been brought down in size. Zapwater™ EDI modules are designed for small countertop or wall-mount laboratory water deionization products, which produce ASTM Type I & II, or JIS A2 to A4 water. Zapwater™ customers can expand their existing laboratory RO/DI/UF product lines to include an EDI-based product. It will be easy to incorporate the compact Zapwater™ and small DC power supply into current laboratory countertop products. Zapwater™ modules produce ten or twenty liters per hour (10/20 lph) from a high quality pretreated RO feed. The module will produce at least 6 Megohm water at 77% recovery. Typical quality will be 10-17 Megohm.cm depending on feed water quality.
Zapwater EDI modules were developed as electrodeionization for small countertop or wall-mount laboratory water systems. Zapwater RO-EDI systems can be designed to produce ASTM Type I & II, or JIS A2 to A4 lab water. 17 Megohm typical water quality if the RO and pretreatment are optimized.

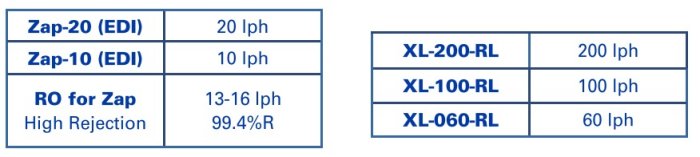

Zap-10 and Zap-20 Lab EDI
- 10 and 20 l/hr modules
- 6mm metric tubing connections for worldwide use
- No torque required
- 24- or 48-VDC power supply included
- Petite modules, only 7 cm wide, 24 cm tall (less than 3×10 inches)
- Ship from stock.
- Zap modules are compliant with FDA CFR 21.
- High Rejection RO 1812 RO’s developed for lab system use 13-16 l/h (99.2% at 6 bar (85 psi)). Brand: ExcellLabRO
- Model: Zap-10-M or Zap-20-M
- Product Flow: 10 or 20 Iph, typical
- Size: 23.5 x 7 cm (7 or 9 cm deep)
- Material: FDA/CFR 21 Approved: PP, PPO, IX
- Mounting: Threaded metric holes, M6
- Plumbing Connections: John Guest push-in tubing
- Standard: Metric: 6mm
- Concentrate Flow: 3 or 6 Iph, typical
- Feed Quality: RO permeate, < 10 uS/cm TDS, < 5 ppm C02
- Recovery: 77% minimum
- Pressure Drop: < 0.5 bar
- Electrical: 24 or 48 VDC (0.75 amp maximum)
- Power Supply Included Controls: Power must be off unless there is flow to the module
Pretreatment Cartridges (replacement business)
- Activated Carbon: Chlorine Scavenger
- Cation Resin: Softener
- Acid Neutralizer: C02 Scavenger
- Macro Resin: Organic TOC Scavenger
- 1 micron Filtration: RO Protection
High Rejection RO Module
- High Rejection Thin Film RO 16 Iph (80 gpd)
- 99.4% Rejection Typical
- ExcellLabRO by SnowPure SXR-1812-HR
Polishing Cartridges
- Mixed Bed for ASTM Type I or JIS A4
- Submicron Filter (UF, 0.05 micron) UV(185/254nm)
- No concentrate recirculation or brine injection
- Thin-Cell efficient technology
- Thin-Concentrate non-scaling technology
- Unique non-scaling electrode system
- Patented Excellion"*` membranes
- Electropure"" EDI technology was born in 1977. before lonpure
- SnowPure is privately held
- SnowPure is your partner, not a competitor
- High quality Electropurem EDI training and OEM support
- Continuous Process-no upsets
- Operating cost is minimized
- No hazardous waste, no associated costs and risks
- No regeneration acid or caustic
- Flexible - easy to expand a modular EDI system
- Reliable - no recirculation system components to fail
- SnowPure believes strongly in training—this helps ensure field success with Electropure" EDI systems.
- SnowPure assists new OEM customers through their system design phase.
- Our customers also have access to our Best Practices P&ID`s to aid in their EDI system optimization.
- Combined with ongoing Technical Service, we help ensure success
