AQUAmax - Model Classic 1-16 / 25 m 1-16 Z with 25 m Cable -Small Sewage Treatment Plant
For new installations according EN 12566-3 and for retrofitting of existing plants for the operation of a full-biological SBR plant. The plant is pre-assembled and approved by the German building authorities and can be assembled and installed into the designated tanks with a few manual operations.
The equipment consists of:
- 1 supporting frame made of PE
- 1 submerged aerator AQUA 5 / 230 V / 50 Hz
- 1 submerged excess sludge pump ATBlift 2/ 230 V / 50 Hz
- 1 submerged clearwater pump ATBlift 2/ 230 V / 50 Hz
- 3.5 m clearwater hose DN 25
- 5 m feeding hose DN 32
- 1 electronic control unit / 230 V / 50 Hz
- 1 sampling bottle
- 1 set assembling material
- base unity made of recyclable material
- height adjustable frame for adjustment at various tanks and PT-figures
- automatic pump flushing prevents from sludge output
- observation of all German effluent classes (C, N and D) by biological processes
- highly effective economy mode in case of reduced water inlet
- easy handling control unit
- electric wiring factory-installed and sealed by casting resin, plug-ready connection
- further operation in case of failure because of single fused aggregates
- battery buffered alarm signal in case of power failure
- quick coupling of the pumps and the aerator supports an eventual exchange
- Secure operating in case of overload and underload
- Floating switch with 15° switching angle
- under voltage signaling UVS
- external alarm connection possible
- Due to the patented ball technology, the AQUAMAX® BASIC requires one pump less than conventional SBR systems.
- This means: less electrical connections, less risk of failure, more safety.
- The principle: When one pump starts, water enters the feed pipe via a robust special valve. Depending on the pumping time, this alternates between filling / sludge discharge and discharge pumping.
- Short pumping: Initiates the filling phase of the SBR tank. Long pumping: The special ball closes the feeding or filling pipe tightly after a few seconds; the water now reaches the clear water drain.
- In this way, a large, heavy pump - i.e. an electrical unit - is completely replaced by a small ball.
- Of course, the AQUAMAX® is also patented: EU patent: 04 010 152.9

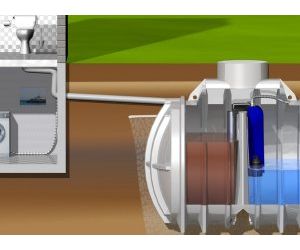

The principle of an AQUAMAX® small wastewater treatment plant is as simple as it is efficient: The wastewater flows from your house connection directly into the tank in your garden instead of - as usual - into the municipal sewer system. In this tank, the wastewater is now cleaned fully biologically, i.e. without the addition of chemical substances - by the way, far better than the legal requirements require. Once the clarification process has been completed, the treated wastewater is discharged into the nature.
Of course, the entire process is fully automatic - you don`t have to worry about anything. Even if you subsequently want to treat your wastewater for reuse, e.g. garden irrigation, the optional UV disinfection module AQUAMAX® BLUE (available for CLASSIC and BASIC) performs this task practically fully automatically.
Conclusion: With the AQUAMAX® an ideal wastewater treatment is very easy to realize!
No matter whether multi-chamber tanks or multi-tank plants, whether made of concrete or plastic, whether for new construction or retrofitting: The AQUAMAX® is the ideal small sewage treatment plant for every area of application - effective, innovative and sustainable. Up to 99% cleaning performance in only 8 hours!

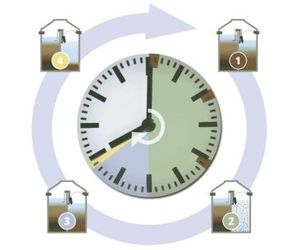

The AQUAMAX® cleans incoming wastewater in 3 cycles daily, each lasting 8 hours. - First the waste water enters the primary treatment, then the 4-phase cycle follows.
1. Feeding phase
The water collected in the pre-treatment is fed into the treatment tank.
2. Treatment phase
During the 6-hour treatment phase, the wastewater is purified. Mixing, aeration and pause times alternate here.
3. Settlement phase
During the settlement phase, activated sludge settles at the bottom.
4. Clear water discharge phase
In the discharge phase, the clear water is pumped out of the system.

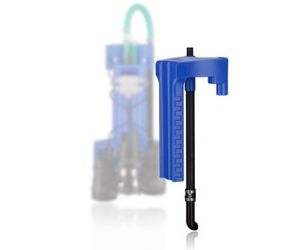

Frame made of recyclable plastic - robust, easy to maintain and very light. 10 years warranty!
With a patented flushing jet, the pump and pipe system are cleaned of residual sludge before the pumping process. This protects the environment and the existing percolation. German patent: DE 100 57 378
Submerged aerator for fine-bubble aeration and gentle agitation in the treatment tank - specially developed for use in small sewage treatment plants.
Etendable!
Due to the unique modular system, the AQUAMAX® CLASSIC can be individually extended.
Control center aControl!
Even less energy consumption due to optimised process times, summer/winter operation and sludge removal operation!
Safe and quiet
All units are safely located in the tank and not in the house.
Durable
Special architecture makes AQUAMAX® BASIC particularly durable.
Future-proof
Always up to date due to the AQUAMAX® modular system.
Low maintenance/spare part costs
Only 2 maintenance cycles per year, no wear-intensive blower.
First-class effluent values
Required effluent values are clearly met!
Certified
General approval by the building authorities and safety tested by TÜV.
Experience
Most sold SBR sewage treatment plant in Germany.
IFUS-guarantee package
The most comprehensive AQUAMAX® warranty package ever.
Comprehensive parts warranty*
10 years on the frame, 36 months on all electrical and mechanical parts.
*only available in Germany.
Security & Service
Nationwide service network in Germany.
The AQUAmax CLASSIC is available both as an M-version for placing on the tank partition wall and as a Z-version for hanging in the tank and can therefore be used very flexibly.

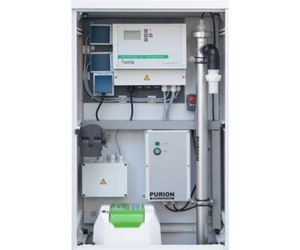

The AQUAmax® -CLASSIC models can easily be extended with the UV disinfection module AQUAmax® BLUE. The AQUAmax® BLUE system works according to the model of natural sunlight and deactivates pathogenic microorganisms in a matter of seconds - without any chemical substances that are hazardous to health or the environment such as chlorine, chlorine dioxide and hypochlorite or expensive membrane technology. AQUAmax® BLUE even kills chlorine-resistant bacteria reliably and safely. The result: service water of bathing water quality with low investment, low operating costs and minimum maintenance.
