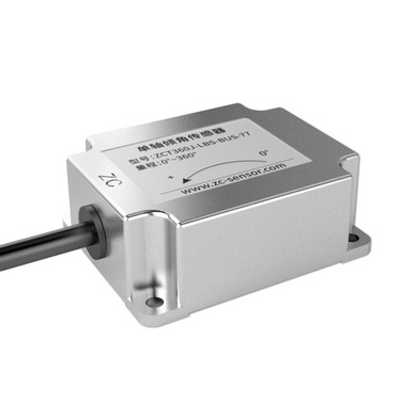

Zhichuan - Model RS485 -ZCT1360J-LBS-BUS-77 -Small Size Low Cost Digital Output Inclinometer
ZCT1360J-LBS-BUS-77 is a Single-axis RS485 great range inclinometer for PV Solar tracker, which is developed by Shanghai Zhichuan Electronic Technology Co., Ltd. The maximum measurement angle range is 360° single axis, accuracy is 0.5° and RS485 output.
- Product Model: ZCT1360J-LBS-BUS-77
- Measuring Range: ±90 ° ( 0~180 °)
- Output: RS485
- Power：Voltage(5V)
- Accuracy: 0.1 °-0.5°
- Application: Solar Tracker
- IP Degree: IP67
- Temperature: -40℃ ~ +85℃
- Shell Size: 54 * 44 * 20 mm
Current application areas: solar energy monitoring; oblique single-axis solar tracking system; Siemens X-ray machine angle monitoring. Wind deviation monitoring, inclination measurement, horizontal adjustment, vertical monitoring, attitude recording; engineering machinery, surveying and mapping instruments, etc.
Large range, high-cost performance; small size, lightweight, easy to integrate; all industrial devices, stable and reliable performance; impact resistance, anti-vibration. By inclinometer, the control system can adjust tilt angle of solar panel, so as to get more energy (25% increase)
