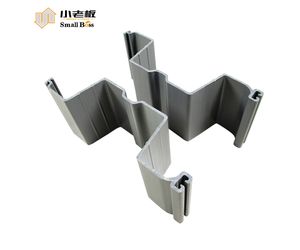

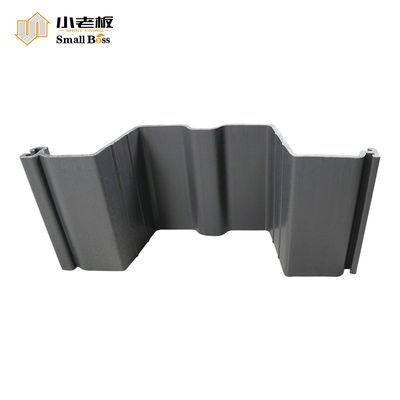

SmallBoss - Model U600 -PVC sheet piles, steel sheet piling
PVC sheet piling systems are the new standard with many advantages compared to hard wood, concrete and steel sheet piling. Vinyl sheet piles are made of poly vinyl chloride also known as PVC:a material with excellent resistance to weather influences and it has a long service life. Moreover, the material will not be affected by natural forces occurring in the ground, rodents, and salt or fresh water. PVC sheet piling has a number of benefits over traditional steel timber or concrete piling, including, costs, durability, ease of handling and a reduced environmental impact.
There are a large number of techniques to drive vinyl sheet piles. The system used largely depends on the circumstances. In some situations particularly when short lengths of Plastic Piling are being installed, it can be inserted into the ground manually by using a maul and pile capThis is often the case in peat land areas, where the ground conditions are more favorable. When installing longer lengths, or where the ground conditions are more difficult,a piling hammer should be used Driving the sheet pile directly can be done with a standard pneumatic hammer or a light vibrator with or without a clamp. This system is only suitable for driving at light conditions and to a limited depth. For heavyconditions and installation from 4m up to 8m depth, it is advisable to usea steel support sheet pile with exactly the same shape as the PVC profileWith support harder soil can be penetrated and installation is speeded up because the hammer does not have to be disconnected from the steel guiding sheet pile.
DOES NOT ROT OR RUST
MANUFACTURED FROM RECYCLED PLASTIC
RESISTANT TO THE MAJORITY OF CHEMICALS
NOT AFFECTED BY SALT WATER
LIGHT WEIGHT, EASY HANDLING
REDUCED IMPACT ON NATURAL RESOURCES

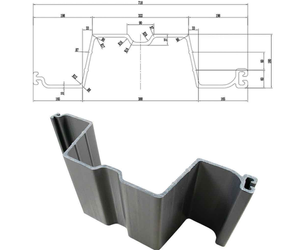

Section width: 600mm
Section depth: 230mm
Weight: 13kg ±0.5/m
Thickness: 8mm
CUT-OFF & CONTAINMENT SYSTEMS
Small boss Vinyl Sheet Piles are frequently the optimal solution for fluid containment projects. Vinyl PVC is a inert material that can exhibit superior chemicalresistance, water corrosion resistance. The interlocks of the sheet pile can be coextruded with a sealing membrane that further improves cutoff performance. Applications include but are not limited to:
· Groundwater cut-off
· Chemical containment
· Fluid Seepage Barriers
· Protection of Foundation Structures

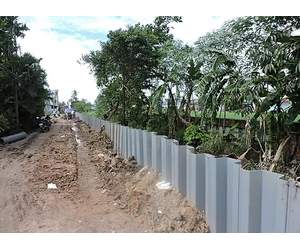

FLOOD PROTECTION STRUCTURES

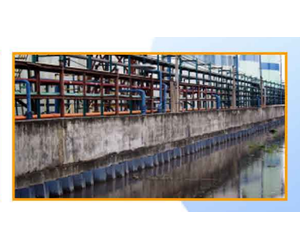

Vinyl Sheet Piles are frequently utilized to replace old corroded sheet pile structures as a superior alternative with superior corrosion resistance that is environmentally friendly.Vinyl PVC Sheet Piles can be utilized for flood protection structures as an:
·Flood Walls/Flood Levee
·Stabilization of Dams
·Protection of Piping
WATER CONTROL SOLUTIONS
Small Boss Vinyl Sheet Piles are an eco-friendly material that is light-weight, aesthetic and very corrosion resistant. Vinyl PVC Sheet Piles can be utilized for water control structures that function by altering the flow of water in a pond, drainage channel or stream sheet piles have been utilized for water control applications for decades. Examples of utilizing vinyl sheet piles releva nt to water control systems include:
· Baffle Walls for water or waste water flow control
· River Weirs
· Pond Linings
· Channel Linings for agricultural applications
· River Diversion
· Mining drainage systems
