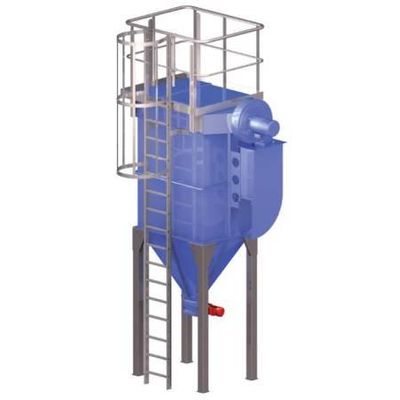

ProJet - Smart Compact Filter
With the objectives of process optimization, cost reduction and efficiency of dedusting specialist Intensiv-Filter has developed an optimized compact filter that is tailored to the particular application. Equipped with mounted fan and silencer and associated cleaning control this new compact filters are the most readily available and inexpensive dedusting solution. The ProJet smart is designed as a compact filter with dust collection chamber or top filter with optional bypass damper in a modular system and is based on four filter heads, which are combined with four filter bag lengths. Intensiv-Filter, with its filter program ProJet smart modern and tailored solutions for dedusting of flow rates 2,000 m3/h - 20,000 m3/h in particular. For each request in a variety of industries dedusting solutions can be quickly and flexibly designed and delivered. In terms of quality and durability set the new compact filter a new benchmark in industrial dedusting.
- Electrically and pneumatically ready-for-connection Compact filter
- Filter solutions with dust collection hopper or silo filter / bunker top filter
- Four filter head sizes, which can be combined with four filter bag lengths
- High rigidity through FEM-aided design
- Suitable for indoor and outdoor installation at various operating conditions
- Standard equipment with ProTex PES filter bags with 130 mm diameter in a vertical arrangement
- Cleaning by means of efficient Intensiv-Filter Jet Pulse technology
- Jet-Pulse cleaning control
- Injector system with "ideal nozzle" at injector pipes and inlet nozzle at the hose inlet
- Compressed air storage with integrated diaphragm valves
- Air service unit with filter and pressure regulator
- Differential pressure measurement with U-tube manometer
- ProTex energy saving filter media (nominal diameter 130 mm)
- Cages in galvanized finish
- Access to clean gas range via ceiling door
- Flanged fan of clean gas chamber
- Sound absorber/silencer with splitters , perforated metal cover
- Inspection protection with integrated fall protection
- Ladder with non-slip rungs (from 3 m mounting height with back protection)
- For the ProJet smart compact filter additionally filter support with base plates, dust collection chamber with inspection hole, double pendulum flap or rotary valve
Choices
-
Reinforced dust collection chamber for 100% filling (based on the height)
-
Bypass line / flaps for top filters
-
Hose fitting with snap ring or wire ring with hose clamps
-
Truck transport or container transport
Surface Treatment
-
Pretreatment Street 2 according to DIN 55928inside: zinc phosphate primer coating 40 microns gray green
-
outside: zinc phosphate base and resin top coat - blue gray (RAL 7031), each 40 microns
-
Handrail and posts (inspection protection): hot dip galvanized
-
Toeboards inspection protection: in filter color
-
Ladder: hot dip galvanized
Delivery
-
Aligned delivery items on truck, or container transport
-
Pre-assembled Clean gas chamber (cleaning control, valve block)
-
Cages and filter bags loose
-
Steel construction in parts
-
3x documentation in German or English
Additional Options with Extra Charge
-
More sound insulation and heat insulation measures
-
Drawing supply of steel construction, hopper and housing
-
Special paint
-
More ProTex filter media qualities
-
Connection of other discharge devices
-
Connection to existing clean gas lines
-
Fan with external pipe connections
-
Dust collection and wiring on the raw gas side
