Nautilus - Smart ECMO Module

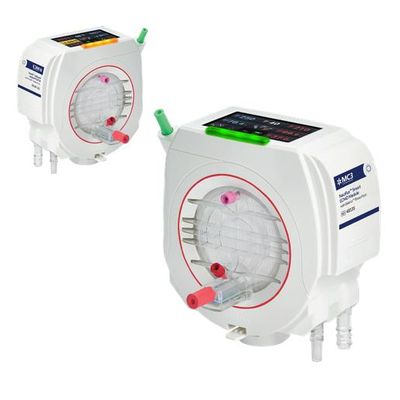

The Nautilus Smart ECMO Module improves long-term gas transfer while providing real-time device performance accessible from an intuitive touch screen and visual status bar. The Nautilus Smart ECMO Module with Balance Biosurface is used in extracorporeal life support procedures to oxygenate blood, remove carbon dioxide, and regulate blood temperature. Blood enters the device and passes through both the heat exchange membrane, where temperature is adjusted, and the gas transfer membrane, where oxygen is absorbed and carbon dioxide is removed. The device contains integrated sensors with an electronic touch screen display and visual status bar.
The following measured parameters are visible on the electronic display: inlet pressure, inlet oxygen saturation, outlet pressure, outlet oxygen saturation, and outlet blood temperature. The difference between the inlet and outlet pressure, delta pressure, is calculated and also displayed on the screen. The touch screen display allows users to set alarm limits for all measured parameters. The device will alarm visually and audibly when the limits are exceeded.
Real-time device performance data for pressure, saturation, and temperature-all accessible from an intuitive touch screen-allows for proactive circuit management.
View monitored parameters.
- Pressure
- Delta P
- Sats
- Temp
- Set alarm limits.
- Receive visual and audio alert notifications.
