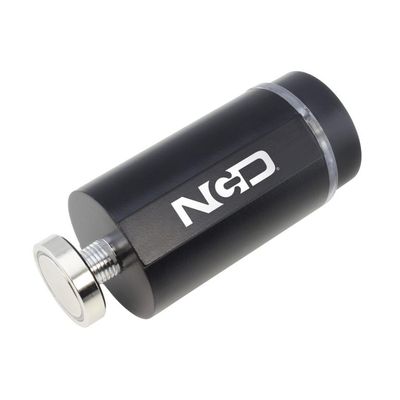

Smart Industrial IoT Wireless Vibration Temperature Sensor

• Industrial Grade 3-axis MEMS Vibration Sensor with ±16g Range
• Overall values with Time Domain data Capabilities
• Calculates RMS and MAX g Vibration
• Calculates RMS Velocity Vibration
• Calculates RMS  Displacement
• Calculates Peak Vibration Frequency
• Raw Time Domain Data for FFT analysis
• Wake up on Motion Feature
• Local Alert indicator LED
• Over the Air Configuration
• In Built FFT Analysis
• Noise Removal using Low-pass And High Pass Filter
• Frequency Range (Bandwidth) 1.56Hz ~ 6.4kHz
• Sample Rate up to 25,600Hz
• Encrypted Communication with 2 Mile Wireless Range
• Multiple Probe Mounting Option 1/4 NPT, 1/4-28 UNF, And Magnet Mount
• Dimension – Length 10cm, Diameter 4.8cm Weight 270gram

We are introducing NCD’s Long Range Industrial IoT Wireless Vibration Temperature Sensor and boasting up to a 2-mile range using a wireless mesh networking architecture. Incorporating a 16-bit Vibration and Temperature sensor, this sensor transmits highly accurate vibration data at user-defined intervals. This all-in-one vibration sensor can send computed results thanks to inbuilt FFT and RAW data for further processing on the user end.

The Industrial IoT Wireless Vibration Temperature Sensor V3 is packed with features like Acceleration calculation, Velocity Calculation, and Time Domain Data Analysis For FFT. User configurable Data aggregation intervals range from 1 second to 10 seconds.

The Industrial IoT Wireless Vibration Temperature Sensor V3 samples 2048 of each Axis and then calculates RMS and maximum vibration readings. This sensor combines the information with temperature data in a packet and transmits the result to modems and gateways within wireless range.  Once the transmission is complete, the vibration sensor returns to sleep – thus minimizing power consumption.

Powered by Two AA batteries with a ten-year battery life can be expected depending on environmental conditions and the data transmission interval.

With an open communication protocol, the Industrial IoT Wireless Vibration Temperature Sensor V3 transmits hardware encrypted data that can be integrated with just about any control system or gateway.  Data can be sent simultaneously to a PC, a Raspberry Pi, to Losant IoT cloud, Microsoft® Azure® IoT, and an embedded system. Our free node-red monitoring software can change sensor parameters and wireless transmission settings.

The long-range, price, accuracy, battery life, and security features of the Industrial IoT Wireless Vibration Temperature Sensor V3 make it an affordable choice that exceeds the requirements for most industrial and consumer market applications.

• Ideal for Wireless Vibration Measurement of Motors, Pumps, Compressors
• Wireless Industrial Vibration of Robotic Equipment, Conveyors, and Transport Vehicles
• Machine Health Monitoring for a Predicative Maintenance System
• Future Fail Detection for Industrial Machines
• Vibration Monitoring of Conduits, Pipes, and Air Passages
• Vibration and Temperature Monitoring for AWS, Azure, and Losant
