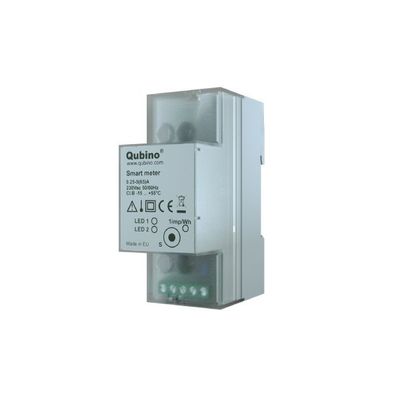

Qubino - Smart Meter
The smart way to control a single high-consumption device or the consumption of your entire home. Measure and save: Qubino Smart Meter measures the consumption of your devices or your entire home. Save energy and lower your bills by tracking energy consumption from your smartphone.
Champion of precision
The most accurate Z-Wave Smart Energy Meter in the world.
It`s the only energy meter on the market that the current passes through it.
No current clamps needed.
It measures much more than W and kWh.
It measures 9 different values:
V, A, W, var, PF, kWh import, kWh export, kVAh, kvarh.
Lower consumption and save energy
Qubino Smart Meter can automatically turn devices off after they exceed the set power consumption if you add additional contactors - IKA or BICOM.
For example, the hot water tank will be turned off after it reaches the set power consumption value.
Main terminals (LI, NI, Lo, No)
Contacts capacity: 1.5 ... 16 (25) mm2
Connection screws: M5
Max torque: 3.5 Nm (PZ2)
Optional terminals (1,2,4,5)
Contact capacity: 0.05 ... 1 (2.5) mm2
Screws: M3
Max torque: 0.6 Nm
Measuring input:
Type (connection): single phase (1b)
Reference current (Iref): 5 A
Maximum current (Imax): 65 A
Minimum current (Imin): 0.25 A
Starting current: 20 mA
Voltage (Un): 230 V (±20%)
Power consumption at Un: < 2 W
Nominal frequency (fn): 50 and 60 Hz
Accuracy:
Active energy and power:
Standard EN 62053-21: class 1
Standard EN 50470-3: class B
Reactive energy:
Standard EN 62053-23: class 2
Optical communication:
Type: IR - used to control BICOM432-40-WM1
Input (1):
Rated voltage: 230 V (± 20%)
Input resistance: 450 kOhm
Safety:
Indoor Meter: yes
Degree of pollution: 2
Protection class: II
AC voltage test: 4 kV
Installation Category: 300 Vrms cat. III
Standard: EN 50470
Ambient conditions and EMC:
According standards for indoor active energy Meters.
Temperature and climatic condition according to EN 62052 11
Ambient conditions and Safety:
According standards for indoor active energy Meters.
Temperature and climatic condition according to EN 62052 11
Dust/water protection: IP20
Operating temperature: -15 ... 55°C
Storage temperature: -40 ... 70°C
Enclosure material: Self-extinguish
complying UL94 V
Indoor Meter: yes
Degree of pollution: 2
AC voltage test: 4 kV
Distance: up to 30 m indoors (depending on building materials)
Weight (with packaging): 150g (170g)
Frequency range: 868.4 MHz, Z-Wave
Installation: DIN rail 35mm
Dimensions (W x H x D): 36 x 90 x 64mm
Package dimensions (W x H x D): 40 x 95 x 80mm
Colour: RAL 7035
ORDERING CODE (MODELING NUMBER): Z-WAVE FREQUENCY
ZMNHTD1: 868.4 MHz
ZMNHTD2: 921.4 MHz
ZMNHTD3: 908.4 MHz
ZMNHTD4: 869,0 MHz
ZMNHTD5: 916,0 MHz
ZMNHTD6: 868,4 MHz
ZMNHTD7: 919,8 MHz
ZMNHTD8: 865,2 MHz
ZMNHTD9: 922,5 MHz
ZMNHTDA: 919,7 – 921,7 – 923,7 MHz
ZMNHTDB: 868,1 MHz
ZMNHTDC: 868,1 MHz
ZMNHTDD: 919,8 MHz
ZMNHTDE: 920,9 MHz
Parameter no. 7 – Input 1 switch function selection
Available configuration parameters (data type is 1 Byte DEC):
- default value 4
- 0 - disabled
- 2 - IR external relay control – mono stable push button
- 3 - IR external relay control - bi stable switch
- 4 - External relay control – mono stable push button
- 5 - External relay control – bi stable switch
Parameter no. 11 - Automatic turning off IR external relay output after set time
When External IR relay is ON it goes automatically OFF after time defined in this parameter. Timer is reset to zero each time the device receives ON command.
Values (size is 2 byte dec):
- Default value 0
- 0 = Auto OFF disabled
- 60-32535 = 60 seconds – 32535 seconds
Parameter no. 12 - Automatic turning on IR external relay output after set time
When External IR relay is OFF it goes automatically ON after time defined in this parameter. Timer is reset to zero each time the device receives OFF command.
Values (size is 2 byte dec):
- default value 0
- 0 - Auto ON disabled
- 60-32535 = 60 seconds – 32535 seconds
Parameter no. 13 - Automatic turning off External relay output after set time
When External IR relay is ON it goes automatically OFF after time defined in this parameter. Timer is reset to zero each time the device receives ON command.
Values (size is 2 byte dec):
- Default value 0
- 0 = Auto OFF disabled
- 60-32535 = 60 seconds – 32535 seconds
Parameter no. 14 - Automatic turning on External relay after output set time
When External IR relay is OFF it goes automatically ON after time defined in this parameter. Timer is reset to zero each time the device receives OFF command.
Values (size is 2 byte dec):
- Default value 0
- 0 = Auto ON disabled
- 60-32535 = 60 seconds – 32535 seconds
Parameter no. 40 – Power reporting in Watts on power change
Set value means percentage, set value from 0 – 100 = 0 % - 100 %. Available configuration parameters (data type is 1 Byte DEC):
- default value 10
- 0 - reporting disabled
- 1 - 100 = 1 % - 100 % Reporting enabled. Power report is sent (pushed) only when actual power in Watts in real time changes for more than set percentage comparing to previous actual power in Watts, step is 1 %.
NOTE: If power changed is less than 1 W, the report is not sent (pushed), independent of percentage set. When reporting Watts, device will automatically reports also V (Voltage), A (Amperes), Power factor, kVar (Reactive Power).
Parameter no. 42 – Power reporting in Watts by time interval
Set value means time interval (0 – 32535) in seconds, when power report is sent. Available configuration parameters (data type is 2 Byte DEC):
- default value 0
- 0 - Reporting Disabled
- 60 - 32535 = 60 second - 32535 seconds. Reporting enabled, Power report is sent with time interval set by entered value. When reporting Watts, device will automatically reports also V (Voltage), A (Amperes), Power factor, kVar (Reactive Power).
Parameter no. 45 – Reset Power counters
Available configuration parameters (data type is 1 Byte DEC):
- default value 0
- 0 - no function
- 1 - reset counter 1 – KWh
- 2 - reset counter 2 – kVARh
- 4 - reset counter 3 – kVAh
- 15 - reset ALL counters
Parameter no. 100 – Enable / Disable endpoints IR external relay (BICOM) and TRIAC External relay (IKA)
Enabling IR external relay (BICOM) and Triac External relay (IKA) or both of them, means that endpoint (IR external relay) and endpoint (External relay) or both will be present on UI. Disabling them will result in hiding endpoints according to Parameter set value. Note that hiding endpoint has no impact on its functionality.
Values (size is 1 byte dec):
- default value 0
- 0 - Endpoints IR external relay and External relay disabled
- 1 - Endpoints IR external relay (BICOM) enabled, Triac External relay (IKA) disabled
- 2- Endpoints IR external relay (BICOM) disabled, Triac External relay (IKA) enabled
- 3- Endpoints IR external relay and External relay enabled
NOTE1: After parameter change, first exclude device (without setting parameters to default value) and then re include the device.
NOTE 2: If you don`t have IR BICOM relay device mounted and you enable IR communication (parameter 100 is 2 or 3) there will be no valid IR relay state reported. It will be reported IR COMMUNICATION ERROR and LED2 will BLINK.
Parameter no. 110 - Maximum Power auto off
Set value means Maximum Power Consumption (0 - 15000) in watts (W), when relays are turned off according to parameters no. 111 and 112.
Values (size is 2 byte dec):
- default value 0
- 0 - no function
- 1 - 15000 = 1 W - 15000 W (Maximum Power Consumption)
Parameter no. 111 - Delay overpower off
Set value means number of second to power off relay (defined by parameters no. 110 and 112) before restart (30 - 32535) in seconds (s).
Values (size is 2 byte dec):
- default value 30
- 30 – 32535 = 30 s – 32535 s delay
Parameter no. 112 - Relay to power off
Set value selects relay to be powered off when threshold is reached (defined by parameters no. 110 and 111).
Values (size is 1 byte dec):
- default value 0
- 0 - switch between the 2 relays (power off relay 1 first, after power on, if power consumption is still over, power off relay 2, ...)
- 1 - always power off relay 1 (IR external relay)
- 2 - always power off relay 2 (External relay)
- 3 - always power off both relays (relay 1 and relay 2)
