MGS Technology - Model MIPEX-04 PPM [CH4] -Smart NDIR Sensor for Portable Gas Detectors

Smart NDIR sensor for portable gas detectors, offering precise methane detection with ultra-low power consumption for long-term autonomous use.

HIGH SENSITIVITY
Detects methane from as low as 50 ppm up to 5% vol with 10 ppm resolution.

LOW ENERGY DEMAND
Consumes less than 100 µA average current — ideal for battery-powered operation.

FOR PORTABLE DETECTORS
Optimized for compact gas detectors used in industrial safety applications.

BUILT-IN CONTROLLER
Delivers linearized and temperature-compensated data via UART, with no external signal processing required.

RELIABLE IN TOUGH CONDITIONS
Operates in a wide temperature range from –40 °C to +60 °C and up to 98% humidity.

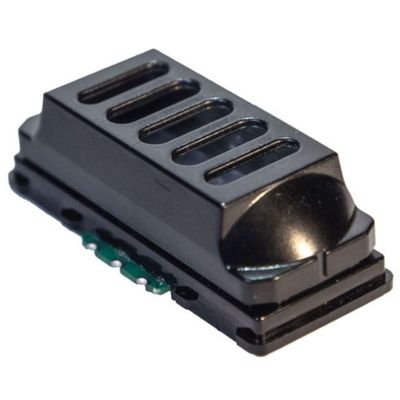

MIPEX-04 PPM [CH₄] is a high-precision NDIR sensor for low-level methane detection in portable gas detectors used for industrial safety.

It features ultra-low power consumption (less than 100 µA average), stable long-term performance, and high sensitivity from just 50 ppm up to 5% vol. The sensor supports UART communication and a wide input voltage range (2.5–5.0 V), making it easy to integrate into battery-powered devices.

• High sensitivity: detects CH₄ starting from 50 ppm
• 10 ppm measurement resolution
• Low power design: less than 0.3 mW (at 2.5 V) average power consumption
• Fast response: T90 < 30 seconds
• Intrinsically safe: certified Ex "ia", no sintered filter required
• Life time: stable performance over 10+ years

Interface:

• UART output: linearized and temperature-compensated data, ready for use

• Parameter : Value
• General specification :
• Gas sampling method: : Diffusion
• Operating principle: : NDIR
• Calibration gas : CH₄
• Relative humidity : up to 98%(without condensation)
• Atmospheric pressure, kPa : 80…120
• Temperature, °C : -40...+60
• Warm-up time, sec : ≤ 120
• Life time : ≥ 10
• Housing material : Polycarbonate Lexan™
• Overall dimensions, mm : 52×24×18
• Weight, g : 11.0…13.5
• Measurement specification :
• Measurement range, % vol. : 0...5
• Variability (+20…+25 ⁰C) : ± 50 ppm
• ± 5 % of readings (whichever is greater)
• Response time t(90), sec : < 30
• Electrical specification :
• Operating supply voltage, VDC : +2.8…+5.0
• Maximum supply voltage, VDC : +5.5
• Communication interface : UART
• Average current, µA : less than 100
