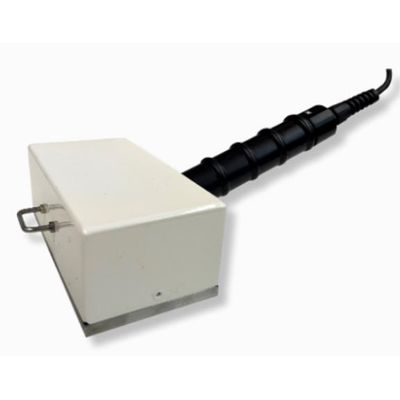

STS - Model SBM2D -Smart Radiation Contamination Probe
The STS SBM2D probe may be used with the Digital Canberra MIP10. The Probe has a standard 16 pin fischer connector that plugs directly into the probe port on the instrument.
Most popular related searches
radiation contamination
gas detection system
radiation contamination monitoring
radiation contamination simulator
radiation simulation
gas detection
contaminant modeling
contamination monitoring
radiation probe
locating system
- Powered by the instrument and does not require batteries.
- Probe automatically turns on when connected to meter and meter is powered on.
- Meter must be plugged into mains supply to ensure sufficient current is available to run the probe.
- Probe features dual detectors designed to increase sensitive area of detection, being a simulated large area probe.
- Features a hook allowing it to be secured to a stand so that hands may be monitored without coming into contact with probe, therefore reducing possibility of cross contamination.
- Once powered on the instrument is set up to produce a small artificial random background of between 1 and 5 cps.
- Monitoring slowly and close to the surface the gas detection system will locate the presence of the STS LS1 liquid simulant that has been applied to a surface.
- On detection of the simulant a rapid increase in the count rate displayed on the monitor will be seen and likely trigger the pre set alarm.
- Moving the probe away from the area will show a quick decrease in the count rate and a return to the background reading.
