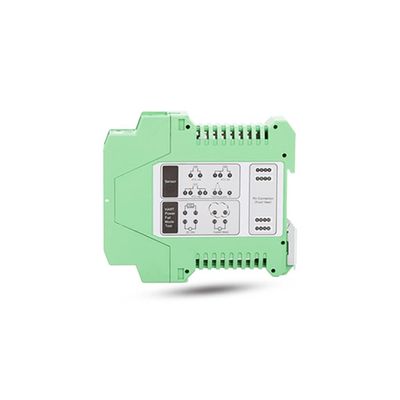

Autrol - Model ATT 2200 -Smart Temperature Transmitter
The ATT 2200 Smart Temperature Transmitters are microprocessor-based high-performance transmitter with ?exible pressure calibration & output capabilities, automatic compensation of ambient temperature & process variable, con?guration of various parameters and communication with HART protocol. HART communication can be Max 1.5Km in Multi-Drop Mode, Max 15 Transmitters can be connected and communicated with Host.
Most popular related searches
- Type: DIN Rail type Temperature Transmitter
- Feature: 4 to 20mA, HART, Loop Powered
- Input: RTD: a=0.00385 : KS, JIS, DIN, IEC, a=0.00391 : US.
T/C: KSC 1602-1982, JISC 1602-1981, ANSI MC96.1-1982 Millivolt
- Excellent Accuracy
- Long-Term Stability
- Selection of various T/C, RTD, MV, Ohm.
- Data Configuration with HART Configurator.
- Automatic Compression: Linearization of Sensor input, Ambient temperature compensation
- Continuous Self Diagnostic
- Fail-mode Process function EEPROM Write Protection
- I/O Isolation: Grounded Thermocouple
- CE EMC Conformity Standards (EN50081-2, EN50082-2)
- Model Name: ATT2200
- Protocol: Digital Communication, HART 7
- Trim ability: DAC
- Power supply & Load Requirement: 250 to 550 ohm @ 24 Vdc, Loop Powered
- Failure Mode: Low ≤ 3.78 mA, High ≥ 21.1 mA
- Ambient Temp. limit: -40 to 85? ( -40 to 185? )
- Firmware Version: 7.X
- Stability: RTD – 2 years (±0.12% of Reading or 0.15? whichever is greater), T/C – 1 year (±0.12% of Reading or 0.15? whichever is greater)
