Mass Flow Online - Model FF-107 FLEXI-FLOW 5 ln/min -Smart Thermal Mass Flow Meter for Gases

With free software Bronkhorst FlowSuite you can add one of the 22 available gases or create mixtures on to the instrument.

This way you have a multi fluid instrument for your application:

• C2H2, Air, C3H4 #1, Ar, CO2, CO, C3H6 #1, D2 #1,
• C2H6, C2H4, He, H2, Kr, CH4, Ne, N2, N2O, O2, C3F8,
• C3H6 #2, C3H8, C3H4 #2

You can easily connect the instrument to your phone via Bluetooth and use it with the app.

Alternatively, the instrument can be connected to a PC using the appropriate cables.
Read here to learn how to connect the FLEXI-FLOW to your PC.

• Gases: max. range
• N2,Air, H2: 5 ln/min
• O2: 4.5 ln/min
• Ar, CH4: 4 ln/min
• He: 7 ln/min
• CO2: 3.5 ln/min

Measurement / control system:

• Flow range: 0.1.-5 In/min
• Accuracy: ±1.5% Rd plus ±0.5% FS {At calibration conditions)
• Repeatability: < ± 0,2% Rd
• Turndown ratio: 1:50
• Pressure rating (PN): 16bar(g)(232psi(g))
• Temperature rating: 0...50oC(32°F...122°F)
• Operating pressure: 0,8... 17bar{a)
• Pre-installed gases: Air, N2,02, H2, Ar, He, CH4, C02 embedded gas data for 22 unique gases plus any mixture of these gases
• Standard calibration gas: N2
• Response time (sensor): <30ms
• Temperature coefficient: Flow sensor: zero 0.015% FS/°C; span 0.05% Rd/°C
• Leak integrity, outboard: Typical < 2 x 10-9 mbar l/s He
• Attitude sensitivity: Mounting any position, attitude sensitivity negligible

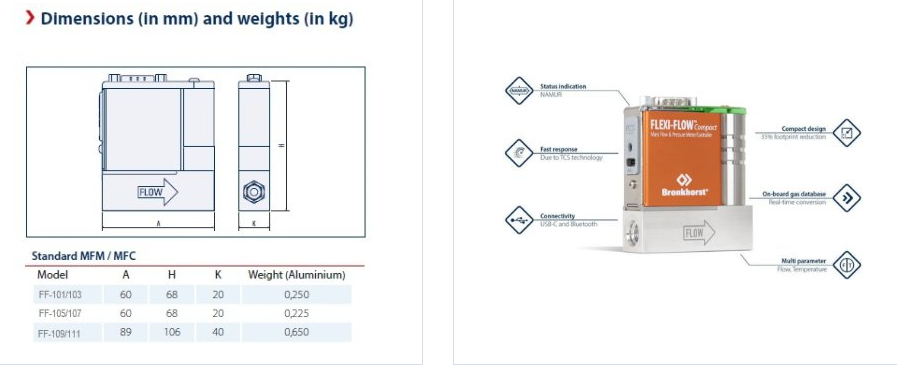

Mechanical parts:

• Material (wetted parts): aluminium, stainless steel, silicon nitride, epoxy, aluminiumoxide, glass
• Test pressure: 25 bar(g)
• Process connections: G1/8"BSSP ISO 1179 cavities
• Sealing material: FKM 51415
• Weight: 250 grams
• Ingress protection: IP40

Electrical properties:

• Power supply: +24VDc±10%
• Max. power consumption: 0.5 Watt
• Digital Communication: Modbus-RTU / FLOW-BUS
• Electrical connection: 9-pin D-submale
