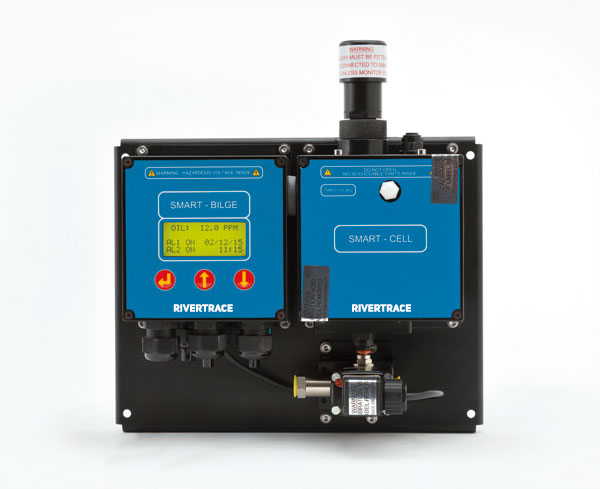

Smartsafe - Model ORB -Bilge Overboard Security Systems
The SmartSafe ORB (oil record book) Bilge overboard Security System was developed in response to our customers` worldwide requests and requirements. This system records the oily water discharge process of any Oil Water Separator (IMO - MEPC 60.33 or 107.49) thus avoiding the common mistakes of manual entries and log variations in the oil record book. These errors are an easy target for Port State Control and other Marine Enforcing Agencies.

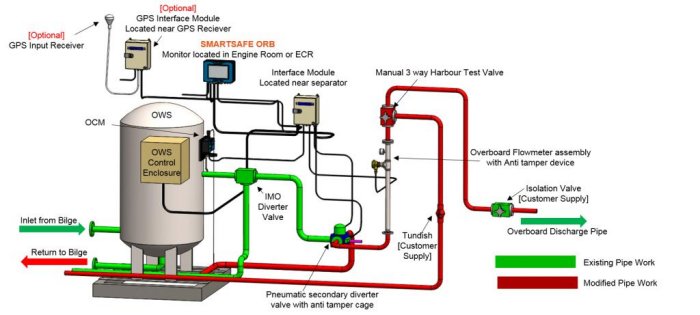

It is a complete interlocked system ensuring security of your discharges. This includes tamper proof electronic flow meters and secondary diverter valve with position feedback installed after the standard IMO diverter valve. The secondary diverter valve is controlled solely by the Smartsafe ORB and will immediately be closed should a malfunction or malicious act be detected.
Rivertrace’s SMARTSAFE ORB can provide electronic recording of the discharges. When connected to the ship’s LAN system the monitor will send automated emails at set intervals. The data is then interpreted and recorded in the Rivertrace Connected database and shown on the user-friendly dashboard interface. All data including the email report can be accessed through the dashboard providing the user with a full auditable trail of the discharges. The discharge data can also be used as an automated entry into your electronic ORB.
The SMARTSAFE ε-ORB has been developed under a newly formed joint venture SENSƐAS, in which Rivertrace are working exclusively with maritime technology and marine risk prevention firm, Prevention at Sea Ltd to develop sensor technology with maritime software to provide the industry with a smarter, simpler way to improve processes and recording data.
- Bilge Water Discharge Security
- Integration with Electronic Oil Record Books
- Protection Against Magic Pipe
- Provides early indication of faults
- Peace of mind knowing your vessel maintains accurate information
- Data security —reduce risk of lawsuits and criminal charges
- Mitigate detentions and port delays
- Increased Security against Magic Pipes
- Reduce administrative burden on crew and overtime costs
- GPS + Interface Unit
- Integration with Electronic Oil Record Books
MEASUREMENT
- Supply voltage: 100 – 240V ac
- Supply variation: ±10% of Nom. Voltage
- Supply frequency: 50/60 Hz
- Consumption: 30 VA Max
- Control display: 10” Touch Screen
- Approval: ABS Type Approval/Product
Specifications and system descriptions accurate at time of printing. These are subject to change.
This system may be installed in line with any new and existing IMO MEPC 60(33) and 107(49) approved monitors.
