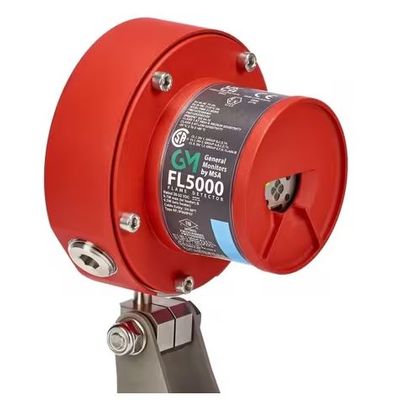

SMC - Model FL5000 -MSIR Flame Detector

FromMine Safety Appliances Co (MSA)

SHARE

The MSA General Monitors FL5000 is an advanced multi-spectrum infrared (MSIR) flame detector that provides superior false alarm discrimination over long distances. The FL5000 employs a multi-spectral optical IR sensing array with sophisticated Artificial Neural Networks (ANN) to reliably discriminate between actual flames and the vast majority of false alarm sources.

Most popular related searches

flame detection system

multispectrum IR flame detector

IR flame detector

optical sensing

optical monitoring

industrial gas generator

spectral sensing

Offers solid performance and reliability, backed by a five-year warranty
Built-in optical heater helps suppress false alarms caused by frost or condensation build up
Swift setup and diagnostics enables easy configuration and event log downloads from mobile devices

Enhanced Performance. Detects fires up to 310 ft (95 m) away.
False Alarm Discrimination. Improved false signal suppression using advanced neural network technology.
Bluetooth Technology. Configuration and diagnostics using exclusive Flame Connect app.
22 FM-test fuel sources for unbiased performance verification
Backwards Compatibility. Easily upgrade FL4000H/FlameGard 5 MSIR detectors with upgrade kit
Test Anytime, Anywhere. Easily test with our exclusive TL105 Test Lamp that allows the FL5000 MSIR Flame Detector to be safely tested under real fire conditions with a simulated flicker of a flame.
Optical Path Integrity Self-Check. Continuous Optical Path Monitoring (COPM) performs self-check every two minutes to ensure the optical path is clear and the electronic circuitry is functional.

Applications : Compressor Stations
Fuel Loading Facilities : Offshore Platforms
Refineries : Aircraft Hangars
Distance : 310 ft (95 m) for n-Heptane fire
Heated Optics : Yes
Housing : 316 Stainless Steel, Red Powder Coated
Markets : Utilities
Oil & Gas : General Industry
Product Diameter : 5.44" (138 mm) - base, 3.50" (89 mm) - optical housing
Product Height : 4.3" (109 mm)
Product Weight : 7.6 lbs (3.45 kg) - without mounting bracket
Response Time : 10 sec
Spectral Range : 2-5 microns (IR)
Warranty : 5 Years
