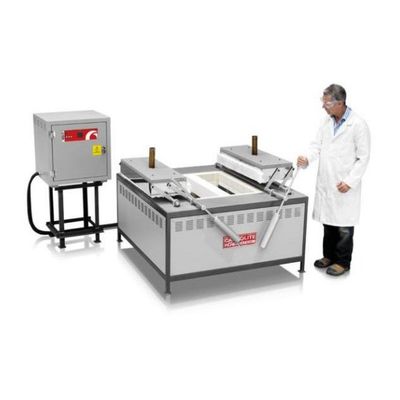

Carbolite - Model SCF -Smelting Furnace
The smelting furnace range (SCF) of top loading crucible furnaces is available in 3 sizes with a maximum operating temperature of 1400 °C. They are specifically designed for the smelting of precious metals. Each smelting furnace is robustly constructed from heavy gauge hollow steel section and zinc coated sheet steel panels. Silicon carbide heating elements surround the chamber sides and are protected by silicon carbide tiles. The hearth is constructed from refractory bricks and silicon carbide tiles. The SCF 1 has a single chamber, all other smelting furnace models have twin chambers with separate lids. Carbolite also offers a range of cupellation/fire assay furnaces.
- Max temp: 1400°C
- Charge capacity: Up to 8 crucibles 120 mm OD x 180mm high or up to 48 crucibles 79 mm OD x 97 mm high
- Specifically designed for the smelting of precious metals
- The horizontal, parallel opening lids open with the hot face away from the user
- Each lid is vented by a 50 mm diameter chimney
- Silicon carbide heating elements protected by silicon carbide tiles
- The hearths of the SCF 4 and SCF 8 models include cast alumina supports to securely hold the appropriate number of crucibles
- The hearths of the SCF 24 and SCF 48 models are the same size but without crucible supports
- A 24 hour, 7 day timer
A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications.
SCF 1
Max temp (°C): 1400
Max continuous operating temp (°C): 1350
Charge capacity: --
SCF 4
Max temp (°C): 1400
Max continuous operating temp (°C): 1350
Charge capacity: 4 crucibles 120 x 180 (OD x H mm)
SCF 8
Max temp (°C): 1400
Max continuous operating temp (°C): 1350
Charge capacity: 8 crucibles 120 x 180 (OD x H mm)
SCF 24
Max temp (°C): 1400
Max continuous operating temp (°C): 1350
Charge capacity: 24 crucibles 79 x 97 (OD x H mm)
SCF 48
Max temp (°C): 1400
Max continuous operating temp (°C): 1350
Charge capacity: 48 crucibles 79 x 97 (OD x H mm)
- Dimensions: External H x W x D (mm): 1025 x 1350 x 1300
- Dimensions: Chamber H x W x D (mm): 200 x 245 x 500
- Dimensions: Control module H x W x D (mm): 630 x 600 x 490
- Thermocouple type: R
- Max power (W): 24000
