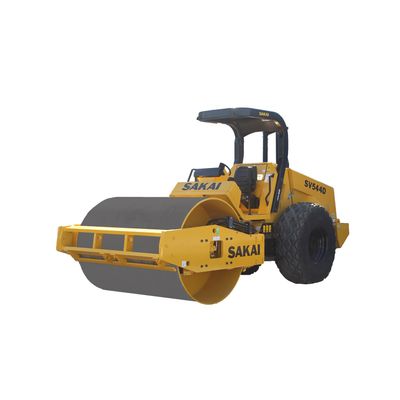

Sakai - Model SV544D -Smooth Drum Soil Roller

The SV544D is an 84-inch single drum vibratory compactor meticulously crafted for medium to high volume soil compaction. With its smooth drum, this machine excels across a broad spectrum of materials, efficiently compacting both cohesive soils (such as clay and silt) and granular fills (including sand, gravel, and crushed rock). It’s a prime choice for large-scale infrastructure, expertly tackling projects like highway and airport subgrades, expansive embankments, and major commercial developments. Driven by a reliable 130 HP Cummins diesel engine with selectable Eco Mode, the SV544D delivers both hard-hitting force and fuel efficiency. Confidently navigate challenging terrain with its standard, user-selectable traction control, ensuring superior performance on slopes climbing up to 32.2 degrees (63% grade).

Reliable. Easy-To-Use. Durable.

• 84"
• 24,250 lbs
• 130 HP Cummins

• High traction capability ensures compaction in both forward and reverse — even on jobs with soft ground, slopes or rough terrains.
• Selectable traction control allows forward slope and reverse slope operation.

• There are 2 range of vibration, high amplitude and low amplitude.
• Reaches target density in fewer roller passes.
• Achieves uniform compaction throughout lift thickness.

• SAKAI’s unique drum mounting system extends the life of the drum isolators.
• Patented drum vibration isolation system and floating deck keep the operator free from vibration.
• Durable, high quality components such as hydraulics, drum and center-pin hitch assure longer life and lower maintenance costs.

• ROPS
• SAKAI proprietary emergency brake pedal which kills the engine and stops the machine instantly
• Retractable seat belt
• Horn and backup alarm
• Operator deck hand rails
• Electric parking brake w/ interlock

• Medium to high compaction site work
• Cohesive soils (clay, silt)
• Granular soils or rockfill (sand, gravel, crushed rock)
• Highway and airport subgrades and subbases
• Embankments
• Dams and reservoirs
• Large commercial and industrial tracts

• Lug or tractor tires (instead of standard diamond tread)
• LED strobe light / beacon
• LED work lights kit
• Cab with air conditioning
• Mirror kit (included w/ cab)
• Suspension seat
• Padfoot or Sheepsfoot shell kit
• Idle shutdown
• Fire extinguisher
• Extended warranty: 5 years / 5,000 hours (powertrain & full available)
