SNF - Model ML Series - Mannich Polymer Preparation Systems
From Municipal - Floquip Polymer Storage, Makedown and Dose Control Systems
The SNF FLOQUIP Mannich Polymer Preparation Systems are designed for cost-effective and low-maintenance operations. SNF is the leading manufacturer of water-soluble polymers, with years of practical field experience in mannich polymer preparation. That experience is incorporated into every one of our designs.
Products Details

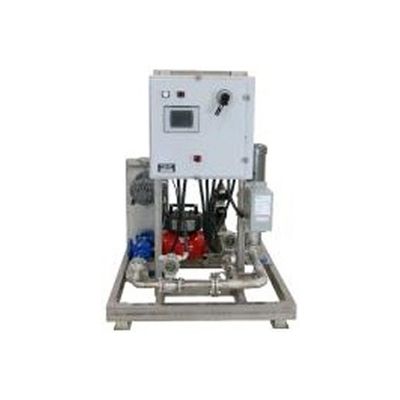

The ML Series systems readily put mannich-grade polymers into solution for a variety of applications - all in simple and economical designs. Neat polymer is metered with a progressive cavity pump, through a specially-designed injection device for adding highly viscous mannich polymer into dilution water. The resulting solution is then ready to be sent to a polymer solution tank for further mixing and hydration. From there, the solution can be pumped and injected into the treatment process.
The ML Series offers 2 models (see reverse side), depending on dosage and process requirements. Additional options include: ratio control of neat polymer and incoming water flows, Allen-Brad ley™ PLC and Panerview™ Touchscreen Operator Interface', various mix tank configurations, and air compressor. Please contact your SNF Sales or FLOGUIP® representative to help determine the best solution for your needs.
Standard Features
- Simple installation and operation
- Specially-designed mannich injection device
- Neat polymer and dilution water flowmeters for calibration
- Automatic rinse cycle
- Low-water flow protection
- Manual and automatic operation
