SnowPure Electropure - Model XL-R Series -Industrial, Electronics Electrodeionization (EDI) Modules

ELECTROPURE™ XL-R modules are industrial EDI modules for producing highresistivity Ultrapure water. They are configured to easily retrofit existing systems with added Electropure™ technology benefits, so the old troublesome Dow Omexell® and GE E-Cell® CONCENTRATE RECIRCULATION IS ELIMINATED. ELECTROPURE™ XL-R modules have the compact Electropure profile and have Electropure™ EDI technology inside. This includes Electropure’s patented Excellion™ membranes, our unique non-scaling electrode system, and our efficient thin-cell technology.

And with Electropure™ EDI thin-concentrate technology, there is no need for the troublesome Omexell® and E-Cell® recirculation system, so it can be eliminated from the system. With the mass-transfer built into Electropure™ EDI thin-concentrate technology, you don`t need either salt injection or feed-and-bleed systems. You also don`t need the IONPURE® “all-filled” design.

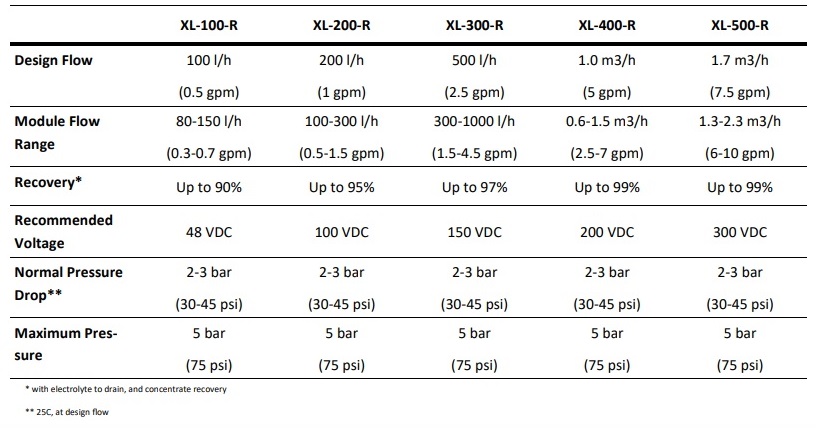

XL-R Industrial, Electronics EDI

• XL-100-R
• XL-200-R
• XL-300-R
• XL-400-R
• XL-500-R

• Feed and product ports are 1-inch female pipe thread (FNPT).
• Simple systems can be built with multiple modules in parallel.
• The -R series is an improved design with the bolt heads on the opposite face.

• No concentrate recirculation or brine injection
• Thin-Cell efficient technology
• Thin-Concentrate non-scaling technology
• Unique non-scaling electrode system
• Patented Excellion™ membranes

• Electropure™ EDI technology was born in 1977,
• before Ionpure
• SnowPure is privately held
• SnowPure is your partner, not a competitor. “We Don’t Compete with our Customers.”
• High quality Electropure™ EDI training and OEM support

• Continuous Process-no upsets
• Operating cost is minimized
• No hazardous waste, no associated costs and risks
• No regeneration acid or caustic
• Flexible—easy to expand a modular EDI system
• Reliable—no recirculation system components to fail

• SnowPure believes strongly in training—this helps ensure field success with Electropure™ EDI systems.
• SnowPure assists new OEM customers through their system design phase.
• Our customers also have access to our Best Practices P&IDs to aid in their EDI system optimization.
• Combined with ongoing Technical Service, we help ensure success.
