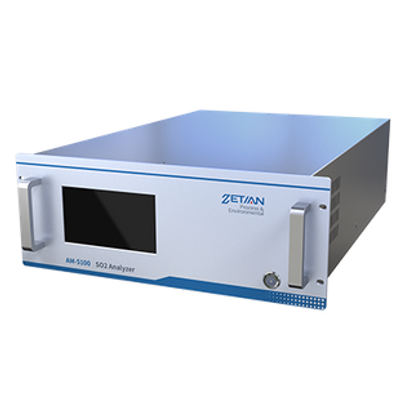

Zetian - Model AM-5100 -SO2 Analyzer
The AM-5100 SO2 Analyzer, based on the Ultraviolet Fluorescence Principle and combined with advanced Micro-processing Technology, provides accurate and reliable low-concentration SO2 detection of `PPB~PPM` level, which can be applied to atmospheric monitoring and CEMS system (dilution method).
Most popular related searches
air quality monitoring system
SO2 analyzer
industrial air quality monitoring
air quality monitoring
industry air quality
atmospheric monitoring
air monitoring system
SO2
industrial air monitoring
air monitoring
- Measurement range from 0~500ppb to 0~20ppm, selectable.
- High efficiency hydrocarbon remover and special optical design, strong anti-interference ability.
- Timed dark current compensation, high stability.
- With self-check function of light intensity attenuation.
- Adaptive signal filtering technology optimizes response time.
- Large capacity memory, store historical data automatically.
- Applied to atmospheric monitoring.
- Measuring range: 0~500ppb, 0~20,000ppb (adjustable).
- Unit: ppb, ppm, ug/m3, mg/m3
- Zero noise:<0.2ppb（RMS）
- Limit of detection: 0.4ppb
- Zero drift:<1ppb/24h
- Span drift:<5ppb/24h
- Response time:<120s (T90)
- Linearity:<1%/F.S.
- Repeatability:<1%.
- Sampling flow range: 800SCCM±10%.
- Ambient temperature: 5℃~40℃.
- Dimension: 178mmx430mmx635mm.
- Weight:<15kg.
- Power: 200V~240V, 50/60Hz, 400W.
- Analog output: 10V, 5V, 1V, 0.1V (selectable).
- Communication: RS232, RS485.
