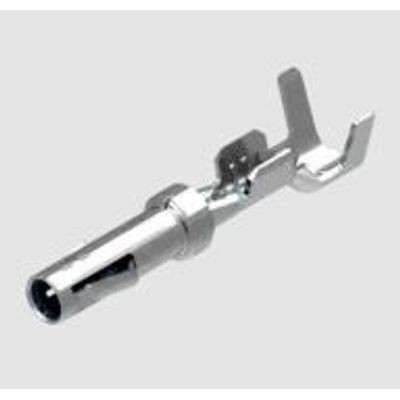

KOSTAL - Model 22124472190 -Socket LKS 1,5 SWS

Product: Socket LKS 1,5 SWS; 22124472190; Tab Size in mm: 1,5; Connection technology: Crimping; Wire size: 0.22 - 0.35; Surface: Ag; Working temperature max.: 170; Sealing principle: Single wire seal (SWS); Mating - / Unmating force in N: max. 8N; Mating cycle Maximum: 100; Current carrying capability at 80 °C in A: 19; Availability: Available.
