Sofi - Self-cleaning Water Filtration Technology
FromSofi Filtration
We have patented a self-cleaning water filtration technology that takes microfiltration to the next level. This new technology is commercialised through our new system, Sofi Filter.
Most popular related searches
self-cleaning water filtration system
self-cleaning water filtration
water filtration system
self-cleaning filtration system
flue gas wastewater
flue gas condenser
flue gas condensation
flue gas wastewater treatment
water filtration
clean water technology
- No filter changes needed
- No chemicals needed
- High capacity
Long-Life Element
- 0.2–20 micron,
- Stainless steel,
- No disposable filters
Integrated Self-Cleaning
Features
Features
- Backpulse with filtrate,
- Ultrasonic cleaning,
- No chemicals needed
High Velocity
Cross-flow Design
Cross-flow Design
- High flux,
- Anti-fouling,
- Low energy need
- Providing solids-free water for reverse osmosis
- Treating flue gas waste water
- Cooling water treatment
- Replacing existing cartridge/bag filters
- Treating waste water before discharge
- Recirculating process water

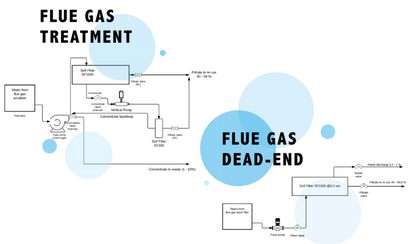

Waste Water Re-use Waste incineration generates a high humidity flue gas that also contains contaminants due to fuel. Flue gas condensing is a cost-efective and ecological way to increase the boiler`s district heat production. The condensate formed in flue gas condensation is with proper treatment usable to replace potable water as raw water. Due to the specific challenges of waste incineration, the Sofi process delivered does not discharge any water into the sewer.
With the Sofi process (MF and RO) approximately 75% of the condensate is gained as makeup water for district heating. Treated condensate is solids free low conductivity (< 150 µS/cm) water. Reverse osmosis uses high temperature membranes with a maximum operating temperature of 85 ° C. This, in addition to water recovery, allows for heat recovery without extra investment in heat exchangers.

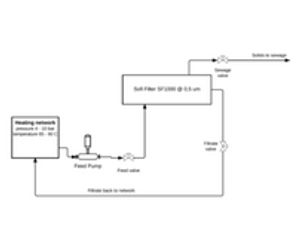

District Heating Network
In CHP plant, even a small amount of very fine particle contamination, e.g. magnetite below 1 µm, lowers the efciency of the heat distribution system and may result to uncertainty in measurement equipment. The solids are removed from side stream by automatic Sofi Filter unit.
