MFRS - Soft Seated Plug Control Valves
As a trusted provider of soft seated plug control valves, we deliver exceptional quality and precision in every unit. Our valves are meticulously manufactured from ASTM A351 CF3 and CF3M materials, ensuring unmatched corrosion resistance and strength. Available in sizes ranging from 1/2-24 inch and designed to meet Class 150-600 LB standards, they are versatile for a variety of applications.

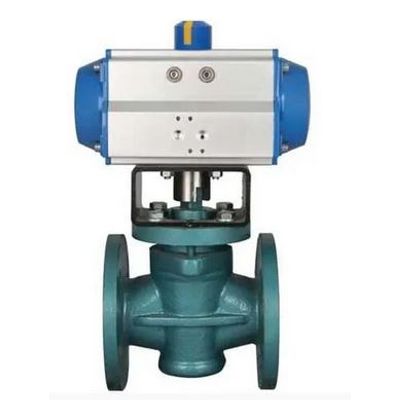

A pneumatic actuator soft-seated plug valve is made up of a non-lubricated, sleeved-type, soft-seated plug valve combined with either a double-acting or single-acting pneumatic actuator. This valve is designed for rapid switching, thanks to the rotary sealing surface`s wiping action, which ensures no contact with the flow media when fully open. It is also effective for use with suspended mediums. Additionally, the pneumatic actuator soft-seated plug valve is highly adaptable to a multi-channel structure, accommodating two, three, or even four different flow channels. This flexibility simplifies the piping system`s design, reducing the need for multiple valves and connections, thereby enhancing the system`s efficiency and complexity.
- Product Name: Soft Seated Plug Control Valve
- Material: ASTM A351 CF3, ASTM A351 CF3M
- Nominal Size: 1/2-24 Inch, DN15-DN600
- Pressure Rating: Class 150-600 LB, PN20-PN100
- Connection Type: Flanged, Weld
- Seal Structure: Soft Seal
- Form: Two or Three Way
- Working Temperature: -29°C - 180°C
- Operation: Pneumatic
- Applications: Petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas and general industry.
