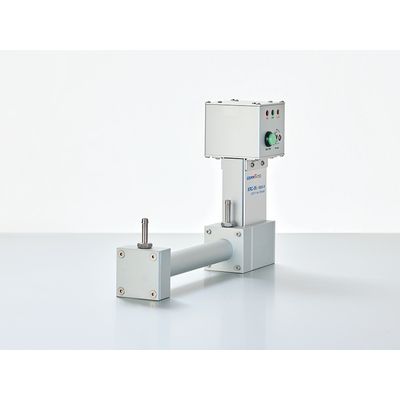

GRIMM - Model 5524-X -Soft X-ray Aerosol Charger Neutralizes
The GRIMM 5524-X soft X-ray Aerosol Charger neutralizes the irregularly charged particles in the atmosphere or generated aerosol to a defined stationary-state charge distribution, regardless of the initial charging state of the aerosol prior entering the neutralizer. The GRIMM 5524-X is a bipolar charger that generates positive and negative ions by soft X-ray radiation instead of a radioactive source such as Americium – 241, Krypton-85 or Nickel-63. Soft X-rays are easily absorbed by the surrounding air and have low permeability. The GRIMM 5524-X is safe, easy to use and requires minimum maintenance. No transport and storing restrictions facilitate various applications in the field of aerosol research.
Most popular related searches
aerosol charger
aerosol neutralization
fundamental aerosol research
aerosol research
particle generator
aerosol size
aerosol flow
ozone generator
nanoparticle monitoring
ambient air
- non-radioactive source
- no transport / storing restrictions
- no particle, electromagnetic waves or ozone generation
- low maintenance
- easy to operate and safe
- embedded controller
- compatible with GRIMM SMPS+C and SMPS+E systems
- neutralizer for aerosol sizing with SMPS systems
- neutralizer for particle generators
- fundamental aerosol research
- investigation of particle charging
- maximum particle concentration : 107 p/cm³
- ion generation method : soft X-ray < 9.5 keV
- tube acceleration voltage : 11 kV
- equivalent X-ray dose : < 0.13 µSv/h at 10 cm distance
- aerosol flow rate : 0.3 - 5 L/min
- aerosol medium : Air or N2
- power supply : 100-240 VAC, 50/60 Hz
- power consumption : 7.2 W
- cooling : natural cooling with ambient air
- dimensions (h x w x d) : 19.1 x 7.2 x 27.3 cm (7.5 X 2.8 x 10.8 in)
- weight : 1.11 kg (2.45 lbs)
