Softeco - Dropping Tower

Normative tests

• Head-form tests    ECE R-43 ( Annex 6 par. 3.2 and 3.3 )
• Ball drop tests       ECE R-43 ( Annex 6 par. 4.2 and 4.3 )
• Ball drop tests       EN 14449
• Ball drop tests       EN 356
• Ball drop tests       ANSI    Z 26.1
• Dart tests             ANSI    Z 26.1
• Shot bag tests      ANSI    Z 26.1

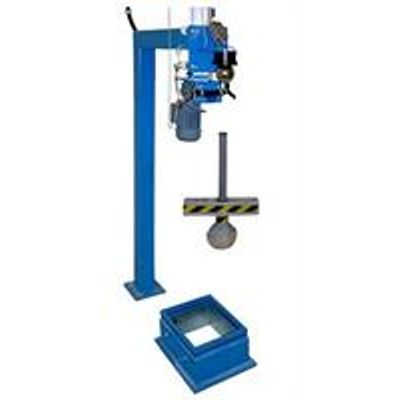

• A 12 m high free-standing or wall-mounted tower ( hung model available )
• Adjustable dropping height with 15 pre-selectable and 1 freely selectable height.
• Magnetic ball holder
• PLC controlled operation.
• Control panel, outside the test area, with dropping height selector according to test.
• Integrated safety fence (option).
