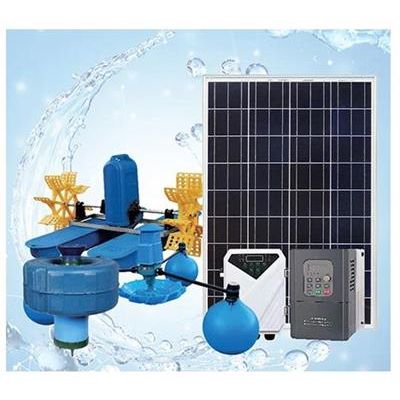

Solar Aerator
The solar aerator is a pump that uses solar energy to increase the oxygen content of water. Often used in fisheries farming. Its main role is to increase the oxygen content of the water to ensure that the fish in the water are not oxygen deficient.
Most popular related searches
solar aeration
solar aerator
level probe sensor
water level probe
water level control
water level controller
aerator
water proofing
level probe
copper wire
- Adopt good capacitor made by advanced priduction line imported from Korea, heat resistant to 85℃, working lift is more than 10000 hours.
- Made by high-speed punching lathe imported from Japan, compared with normal stator, burr is less. concentricity is more standard, stability is improved by 50%.
- Smooth surface, no sand hole, uniform thickness, guarantee each pump no leakage and no crack.
- Adopt automatic painting line, make each pump surface uniform coating and strong adhesive force.
- 100% copper wire, with thermal protector, make the pump stop working automatically at the condition of jam or over load etc.
- 100% coil testing to make sure each coil energized, and no leakage at high voltage condition.
- Permanent magnet DC brushless synchronous motor: The efficiency is improved by 15%-20%; Save energy; Reduce the consumption of solar panels.
- 304 S/S pump shaft.

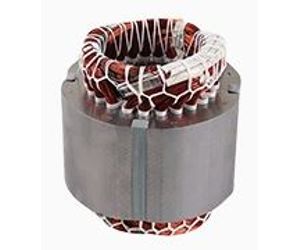

- Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.

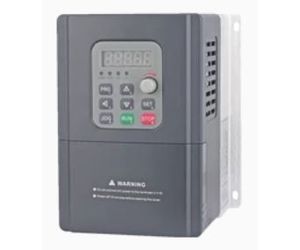

- 1. Waterproof grade: IP65
- 2. VOC range:
- 24/36V controller: 18V-50V48V
- controller: 30V-96V72V
- controller: 50V-150V96V
- controller: 60V-180V110V
- controller: 60V-180V
- 3. Ambient temperature:-15℃~60℃
- 4. Max. input current:15A
- 5. MPPT function, the solar powerutilization rate is higher.
- 6. Automatic charging function:
- Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, the battery can make the pump continuously working.
- 7. LED displays the power, voltage, current, speed etc working condition.
- 8. Frequency conversion function:
- It can automatically run with frequency conversion according to the solar power and user also can change the speed of pump manually.
- 9. Automatically start and stop working.
- 10. Water proof and leak-proof: Double seal effect.
- 11. Soft start: No impulse current, protect the pump motor.
- 12. High voltage/Low voltage/Over-current/High temperature protection
- Maximum power point tracking (MPPT), fast response and stable operation.
- Run (under load) protection.
- Maximum current protection of the motor.
- Low frequency protection.
- Dual mode input, compatible with DC and AC power inputs.
- The (power/flow) performance curve calculates the flow output of the pump.
- Fully automatic operation, digital control of data storage and protection functions.
- The LED displays the operation panel and supports remote control.
- Low water level probe sensor and water level control.
- Powerful lightning protection
- Flood Irrigation
- Fish Farming
- Garden watering
- Agricultural irrigation
- Pond aeration
