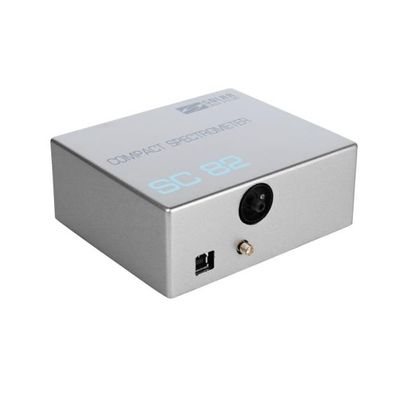

Solar LS - Model SC82 -Miniature Spectrometer
The new compact spectrometer SC82-S13496 utilizes high sensitivity CMOS linear image sensors S13496 and S11639. Highly sensitive (photosensitivity up to 650 V/lx*s), the S13496 image sensor allows using the SC82 spectrometer for low light applications such as Raman scattering, fluorescence, multi-channel spectrophotometry etc. The embedded IMAGING capability features an astigmatism compensator thus further enhancing system sensitivity. Standard Toshiba CCD image sensors TCD1304 and TCD1205 are also available
- HIGH SENSITIVITY CMOS LINEAR IMAGE SENSOR WITH MINUTE PIXELS
- A CHOICE OF DIFFRACTION GRATINGS, SPECTRAL RANGES & RESOLUTIONS TAILORED TO YOUR REQUIREMENT
- USER-FRIENDLY INTERFACE
- EMBEDDED IMAGING CAPABILITY
- EMBEDDED ORDER SEPARATING FILTER (OPTION)
- Laser wavelength control
- Plasma control
- Analysis of any light source in the 200-1100 nm spectral range
Upon Your request, the S100 spectrometer can be equipped with high-order separating compound filter designed for operation with broadband spectra.
The S100 spectrometer can be supplied with VUV or FWF optical fibers with various lengths.
The S100 spectrometer has a wide range of options and accessories that allow efficient collection of light from the sample located at a finite distance and in infinity:
- Condenser PS-2 is designed for collecting light from a sample located at 40 mm distance within a wide spectral range and its effective transmission into an optical fiber or onto an entrance slit of a spectral device.
- Condenser PS-3 is designed for collecting light from a sample located at 29 mm distance within a wide aperture angle and its further transmission into an optical fiber or onto an entrance slit of a spectral device.
- Adapter FA-1 – achromatic adapter for focusing parallel beam to a fiber with 3D-alignment.
- Adapter FA-2 – achromatic adapter for focusing parallel beam to a fiber with an axial alignment.
- Cassegrain objectives allow collecting light from objects located at a distance of 3.5m to infinity.
- Diffuse attenuator FA-3 is designed to attenuate the laser beam while delivering it to a fiber.
- The S100 spectrometer can be supplied with a cuvette holder FA-10 and with fiber-optics immersion probes DipProbes with a set of interchangeable tips for liquid handling.
Contact a SOLAR LS specialist to select the complete set of the device that meets the requirement of your instrument complex in the best way.
