Zhejiang Dingfeng Electric Appliance Co., Ltd.

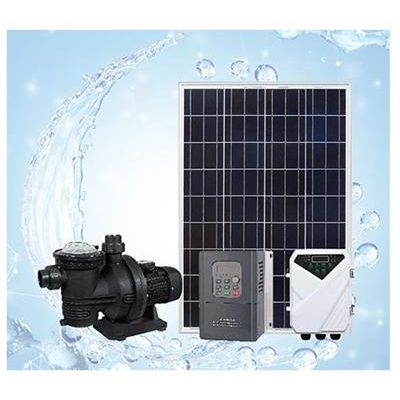

Solar Pool Pump
Solar pool pumps use solar energy to drive pool pumps. It is loved by Australia and other Sunny area regions, especially in remote areas that lack electricity. It is mainly used in the water circulation system of swimming pools and water amusement facilities.
Most popular related searches
solar pool pump
pool pump
pool filtration system
swimming pool filtration system
water circulation system
water circulator
level probe sensor
water level probe
water level control
water level controller
- Intlet/Outlet:Plastic
- Pump Body:Plastic
- Impeller:Plastic
- Motor Body:Die-cast Aluminum
- Bear:NSK
- Screw:316 stainless steel
- Moter:Permanent Magnet Brushless DC Motor(Without Hall)

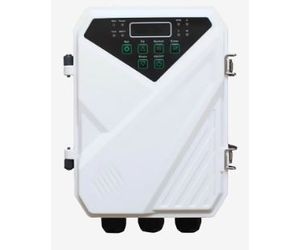

- Controller:32bit MCU/FOC/Sine Wave Current/MPPT
- Controller Shell:Die-cast Aluminum(IP67)
- 1. Waterproof grade: IP65
- 2. VOC range:
- 24/36V controller: 18V-50V48V
- controller: 30V-96V72V
- controller: 50V-150V96V
- controller: 60V-180V110V
- controller: 60V-180V
- 3. Ambient temperature:-15℃~60℃
- 4. Max. input current:15A
- 5. MPPT function, the solar powerutilization rate is higher.
- 6. Automatic charging function:
- Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, the battery can make the pump continuously working.
- 7. LED displays the power, voltage, current, speed etc working condition.
- 8. Frequency conversion function:
- It can automatically run with frequency conversion according to the solar power and user also can change the speed of pump manually.
- 9. Automatically start and stop working.
- 10. Water proof and leak-proof: Double seal effect.
- 11. Soft start: No impulse current, protect the pump motor.
- 12. High voltage/Low voltage/Over-current/High temperature protection
- Maximum power point tracking (MPPT), fast response and stable operation.
- Run (under load) protection.
- Maximum current protection of the motor.
- Low frequency protection.
- Dual mode input, compatible with DC and AC power inputs.
- The (power/flow) performance curve calculates the flow output of the pump.
- Fully automatic operation, digital control of data storage and protection functions.
- The LED displays the operation panel and supports remote control.
- Low water level probe sensor and water level control.
- Powerful lightning protection.
- For water circulation in swimming pool filtration systems
- Water circulation for water Play pool filtration systems
