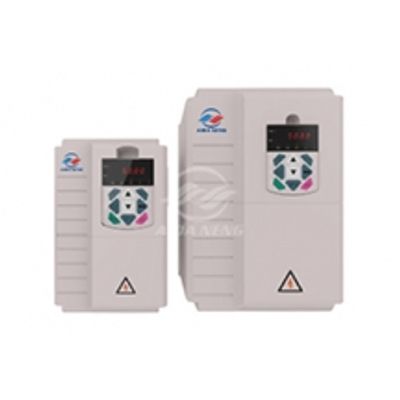

ADA - Model EP20 -Solar Pump Inverter

• Place of Origin Shenzhen, Guangdong,China (Mainland)
• Brand Name ADA
• Model Number EP10-2S-XXB ；EP20-4T-XXB
• Output Power 0.4-450kw
• Output Type AC Current；1PH or 3PH
• Size Depends on Power
• Weight 1.8-200KG
• Input Voltage 450V-800V
• Output Voltage 0-220V/0-380V
• Type DC/AC Inverters
• Output Frequency 0-600HZ
• Output Current 0.7A-500A
• Min Input Voltage EP10: 250V/EP20:450V
• Max Input Voltage EP10:450V/ EP20:800V
• CECERTIFICAT CE   ; ISO9001

Product Introduction

ADA EP series is a controller use for AC motor , and being applicable to solar pump system as well. Inverter get input solar DC current to convert into AC current for AC load,Output 1PH AC or 3PH AC.Its input compatigle with both DC & AC .When sunshine intensity change,the output frequency is adjustable in a real time.Solar pump inverter is environmental friendly and economical,we can use solar pumping system to instead of  generater pumping system more conveniently.

• Build-in MPPT function
• High efficiency
• Optimized frequency output
• Start in the morning automatically
• Stop in the afternoon automatically
• Dormancy and wake up automatically
• Output speed change automatically
• New easy user manual
• Faster and bigger memory chip
• GAC motor and PMSM motor

• Max input DC voltage EP10: 450VDC;EP20: 800VDC
• Recommended MPPT voltage range EP10: 150~400VDC;EP20: 350~750VDC
• Recommended input voltage EP10: 360VDC; EP20: 540VDC
• Rated output voltage 1AC 220V & 3AC 220V / 380V
• MPPT efficiency 99.9%
• Max efficiency of the machine 97%
• Output frequency range 0~600Hz
• Protection degree IP20
• Altitude Below 2000m; above 2000m, derated 1% for every additional 100m
• Standard CE    ;  ISO9001
