Solar Water Pumps

Excellent resource of Sunlight according to geographic location.It will be the most effective to fetch water from canal`s like NARMADA. Can also effectively be used in Government of Gujarat Scheme’s like “Check dam” & “Khet Talavadi” to fetch water.
The total amount spent on diesel per year by farmer in that he can afford Solar Pump in his farm.

• Flood Irrigation
• Drip Irrigation
• Community water supply
• Fish Farming
• Poultry Farming
• Cattle Watering

• Independence from Grid
• Pollution & Noise free
• Low maintenance
• Early payback period
• Environment friendly & Lifetime

• A solar electric array generates electricity from the sun`s light with no moving or wearing parts. A solar pump is designed to utilize the direct current from the array efficiently, even as the energy production varies throughout the day.
• The solar water pumping system is a stand-alone system operating on power generated using solar PV (photovoltaic) Modules. AC Pump can be used with the introduction of Inverter in the System.
• The Pump can be used with 220V, electricity.
• The introduction of the modified valve lets an uninterrupted operation of Hand pump in option of Non-availability of power to submersible. Hence, the same bore is having three options available in the remote, hilly undulating terrine

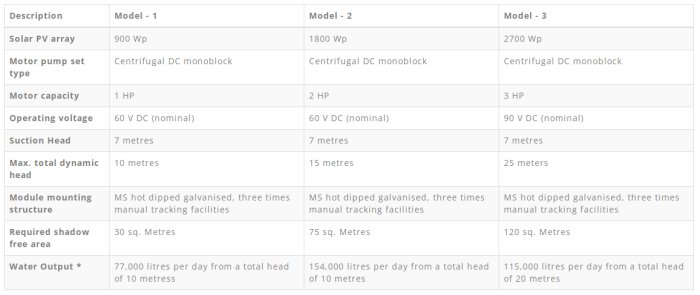

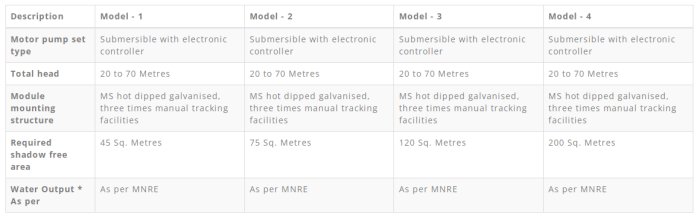

• Capacity : 0.5 HP – 5 HP.
• Discharge: 10K LPD – 150K LPD.
• Long Life Battery Bank (Optional).
• Excess Power diversification.
• Dynamic Head: 30Mtr – 110 Mtr.
• Convenient operation, less expenditure on system maintenance.
• Normally work when sunshine is not enough.
• With MPPT technique (Maximum Power Point Tracking), the invert efficiency is over 95%.
• Intelligent protection control and management on the system, in terms of low voltage, over.
• Voltage, over load, short circuit, deficiency of water in well, excess of water in tank, etc.
