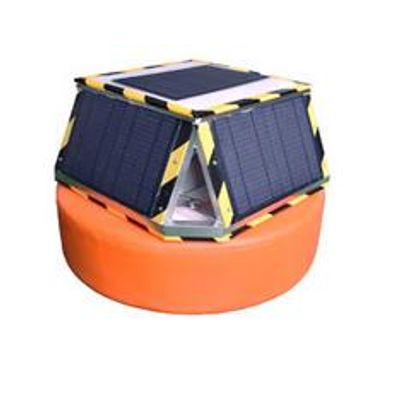

Nobo - Solar Water Quality Monitoring System
Solar water quality monitoring is a new generation of intelligent water quality analysis system and R&D by our company. It easy to install and using with advanced digital sensor, solar panel and powered by accumulator for all day. It has build in DTU to transmit date by GPRS or WIFI. Though mobile APP or computer to view date, testing, calibration,maintenance and intelligent management. Has many advantage with measurement accuracy, high stability, superior repeatability, easy maintenance, intelligent and so on. It can be real time monitoring and controlling which widely use in ocean, river，lakes and aquaculture etc. The system included float ball, mounting bracket, eletrical waterproof box, solar power system, digital sensor, DTU and cloud platform. The float water quality monitoring is equipped with a flow cell and a submersible pump for achieved online calibration function of a specific sensor.
- This product is floating installation, easy install on scene.
- Has advanced in measurement accuracy, high stability, superior repeatability, easy maintenance, intelligent and so on.
- Though mobile App with wireless network(for example WIFI,GPRS) to date collection, online calibration, testing and maintenance. At the same time, the monitoring system can be integrated into the industrial computer environment such as the upper computer and the IoT.
- The built-in sensor uses a method of two-point calibration.
Measurement parameter: temperature, PH, ORP, DO, free chlorine,ozone , ion, water hardness,turbidity, MLSS, SS, TDS, conductivity, salinity, etc.
- Interface: GPRS/WIFI/RS485
- Working TEM: 0-60℃
- Power supply: Solar power system
- Protection: IP65
- Installation method：Floating installation, submersible /flow sensor installation
- Size:Diameter is 700mm,height is 5mm,size of float ball is 700*320*200mm, size of solar panel is 670*530mm
- Weight:23KG
- Floating buoyancy:55KG
- Rated wind speed:≤level 7
- Power consumption：1.5V（Optional digital PH sensor and digital dissolved oxygen sensor）
- Endurance：130 hour （power consumption is 1.5V）
- Solar panel output power:50W(max)
