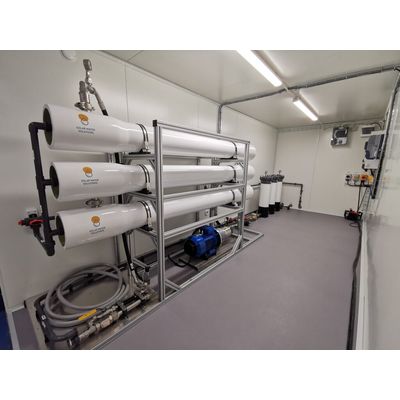

SolarRO - Model BW 120 -Brackish Water Reverse Osmosis System
The SolarRO BW 120 is a brackish water reverse osmosis (RO) desalination system from Solar Water Solutions, optimized for solar-powered or grid-backed operation to deliver high-volume clean water in off-grid settings.
Most popular related searches
brackish reverse osmosis system
BWRO system
brackish reverse osmosis
BWRO
BWRO desalination system
water reverse osmosis
reverse osmosis system
reverse osmosis desalination system
brackish water
raw water feed
- Product water flow rate* : 5 m³/h
- Product water quality* : TDS < 50 mg/L, pH 7
- Raw water feed flow rate : 8.8 m³/h
- Recovery rate* : 57 %
- Minimum salt rejection : 99.5 %
- Brine flow rate* : 3.8 m³/h
- Brine quality* : TDS 4600 mg/L
- System pressure : 10 – 14 bar
- High-pressure pump (HPP) : SS 316L centrifugal multi-stage or equivalent (5.5 kW)
- HPP motor : 5.5 kW
- Raw water feed pump** : 2.2 kW, SS 316L
- Pressure vessels : 3 x 8080, Composite
- RO Membranes : 6 x 8040 BW30HRLE-440 or equivalent
- Cartridge pre-filtration** : Cartridge 5×40″ 25, 3 micron
- Controller : Variable frequency solar drive (15 kW)
- Specific energy*** : 1.2 kWh/m³
- Energy consumption* : 6.0 kWh
- DC power supply requirement (solar PV) : 600 – 800 VDC
- AC power supply requirement (grid) : 380 – 480 VAC / 50 – 60 Hz
- Raw water source : Lake / river / brackish borehole
- Raw water TDS range : 500 – 7000 mg/L
- Raw water temperature range : 5 – 45 °C
- Air temperature range : 0 – 45 °C
- Raw water feed pressure range : 2 – 5 bar
- Patented ANVS® pressure control
- Containerized system (20ft)
- Non-corrosive materials: Duplex, PVC-U, AISI 316L
- CIP (clean in place) system
- Dry run and over-pressure protection
- Product water quality indicator (TDS)
- Remote Monitoring
- Multi-Media filtration
- Specific substance removal filtration
- Antiscalant dosing
- Integrated clean water dispensing system
- Post-mineralization
- UV-disinfection
