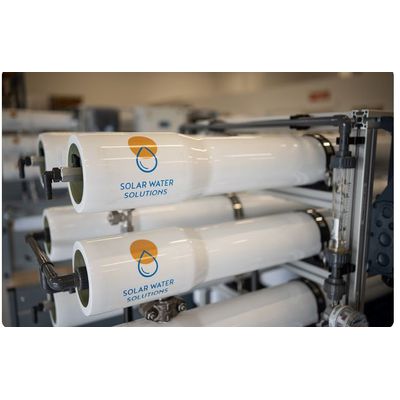

SolarRO - Model SW 120 -Seawater Reverse Osmosis System

FromSolar Water Solutions Oy

SHARE

Make Clean Water with Solar. Cut Costs. Build Resilience. Fast to Deploy. Easy to Operate. Flexible Power Options. Built to Last.

Most popular related searches

cleaning in-place system

seawater reverse osmosis system

water flow rate

raw water source

multi media filtration

reverse osmosis system

water flow rating

seawater reverse osmosis

Product water flow rate*5.2 m³/h
Product water quality* TDS < 140mg/L, ph 6.5
Raw water feed flow rate15 m³/h
Recovery rate*33 %
Minimum salt rejection 99,5 %
Brine flow rate*10 m³/h
Brine quality* TDS 53700 mg/L
System pressure 53 – 57 bar
High-pressure pumpAPP 6.5, Super Dublex, Danfoss
HPP motor11 kW, Bevi
Energy recovery50 %
Energy recovery device (ERD)4 kW
Raw water feed pump**3 kW, bronze/ SS 316L
Pressure vessels 3 x 8080
RO Membranes 6 x 8040 SW440 R or equivalent
Cartridge pre-filtration**Cartridge 8×40″ 25, 3 micron
ControllerVariable frequency solar drive (15 kW, 5.5kW)
Specific energy*** 3.5 kWh/m3
Energy consumption*18 kWh
DC power supply requirement (solar PV) 600 – 800 VDC
AC power supply requirement (grid)380 – 480 VAC / 50 – 60 Hz

Raw water source : Seawater / high saline groundwater
Raw water TDS range : 20000 – 40000 mg/L
Raw water temperature range : 5 – 45 °C
Air temperature range : 0 – 45 °C
Raw water feed pressure range : 2 – 5 bar

Patented ANVS® pressure control
Containerized system (20ft)
Energy Recovery Device (ERD)
Integrated CIP (clean in place) system
Dry run and over-pressure protection
Product water quality indicator (TDS)
Non-corrosive materials: Super Duplex, PVC-U

Remote Monitoring
Multi-Media filtration / specific substance removal filtration
Specific substance removal filtration
Antiscalant dosing
UV-disinfection / Post-mineralization
Containerized system (20ft)
Integrated clean water dispensing system
