SolarRO - Model SW 300 -Seawater Reverse Osmosis System
The SolarRO SW 300 is a seawater reverse osmosis desalination system from Solar Water Solutions, designed for off-grid and remote coastal environments with high salinity up to 36,000 mg/L TDS. It produces clean water at a rate of 13 m³/h with a recovery rate specified for efficient operation
Most popular related searches
seawater reverse osmosis system
seawater reverse osmosis
seawater reverse osmosis desalination system
reverse osmosis system
raw water feed
cleaning in-place system
seawater reverse osmosis desalination
reverse osmosis desalination system
reverse osmosis
raw water
- Product water flow rate*13 m3/h
- Product water quality* TDS < 140 mg/L, pH 6.7
- Raw water feed flow rate38 m3/h
- Recovery rate*34 %
- Minimum salt rejection 99,5 %
- Brine flow rate*25 m3/h
- Brine quality* TDS 54500 mg/L
- System pressure 50 bar
- High-pressure pumpAPP16, Super Dublex, Danfoss
- HPP motor30 kW
- Energy recovery55 %
- Energy recovery device (ERD)104 m3 in 8-solar hours/day
- Raw water feed pump**7,5 kW, bronze/AISI 316L
- Pressure vessels 6 x 80120, Composite
- RO Membranes 18 x 8080 SW30HRLE-440 or equivalent
- Cartridge pre-filtration**High-flow filtration 25, 3 micron
- Controller37kW solar application
- Specific energy*** 2,8 kWh/m3
- Recommended minimum solar PV power***59 kWp
- DC power supply requirement (solar PV) 600 – 800 VDC
- AC power supply requirement (grid)380 – 480 VAC / 50 – 60 Hz
- Daily capacity with direct solar power104 m3 in 8 solar hours/day
- Raw water source : Seawater / high saline groundwater
- Raw water TDS range : 20000 – 40000 mg/L
- Raw water temperature range : 5 – 45 °C
- Air temperature range : 0 – 45 °C
- Raw water feed pressure range : 2 – 5 bar
- Patented ANVS® pressure control

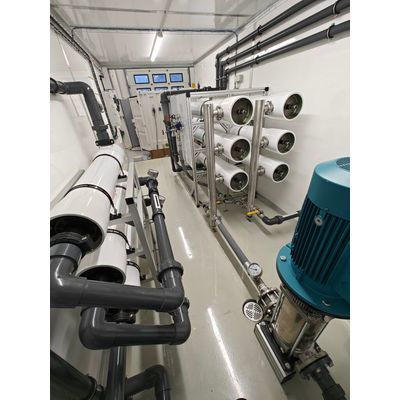

- Containerized system (20ft)
- Energy Recovery Device (ERD)
- Integrated CIP (clean in place) system
- Dry run and over-pressure protection
- Product water quality indicator (TDS)
- Non-corrosive materials: Super Duplex, PVC-U
- Remote Monitoring
- Multi-Media filtration / specific substance removal filtration
- Specific substance removal filtration
- Antiscalant dosing
- UV-disinfection / Post-mineralization
- Containerized system (20ft)
- Integrated clean water dispensing system
