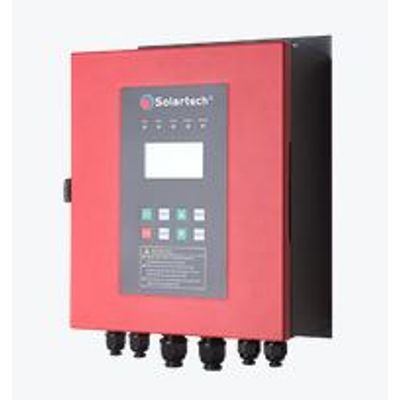

Solartech - Model PB-G3 Series -Solar Pumping Inverter
Solartech PB-G3 Smart Pro solar pumping inverter integrates advanced functions such as Hybrid AC Power, Solar Priority, Remote Monitoring, Multi-pump Linkage, Low-input Voltage and so on. It can be directly installed outdoors without additional devices and control box. It has the advantages and characteristics of simple wiring, easy installation, low maintenance cost, high system efficiency and long service life.
Most popular related searches
solar pump inverter
solar pumping inverter
solar pump
water pump controller
water pump control
water level switch
swimming pool pump
remote monitoring
submersible pump
pool pump
-
Power Range 0.75-45kW
-
Advanced Function Support backup power solar priority
-
Protection Grade IP65
- Compatible with submersible pumps, surface pumps, swimming pool pumps using induction motors.
- Patented dynamic VI maximum power tracking (MPPT) algorithm; Faster response and good stability. MPPT efficiency reaches 99%.
- Full automatic operation. 8 years storage capacity for operation data.
- Support soft start of pump. Full motor protections. Optional water level switch to protect overflow and dry running.
- Good sealing, IP65 protection grade. Ambient temperature: -20~+60?. Ambient humidity ≤95%. Suitable for harsh outdoor installation environment.
- Using high standard components, wide input voltage range, built-in boost circuits for low power models, flexible options for solar panels configuration.
- LCD display, user friendly interface, rich display information.
- Support PV/AC power complementary input, with solar priority function selection which can meet the requirement of 24 hours application while the priority is given to the maximum utility of solar energy and the AC power supply is automatically shielded to achieved the goal of main power saving.
- Optional built-in wireless communication module to implement system remote monitoring.
- Support timing control, pressure detection and control, liquid level depth detection and control and other water pump control functions.
- Support multi-pump linkage operation function, meet the expansion of large-flow and high-lift systems application, improve the power efficiency and reduce the configuration usage of PV modules of the system.
- Support installment encryption to lock the pumping system and enter the activation code to unlock.
