Shenzhen Solartech Renewable Energy Co., Ltd.
Solartech - Model SPM -Solar Pump

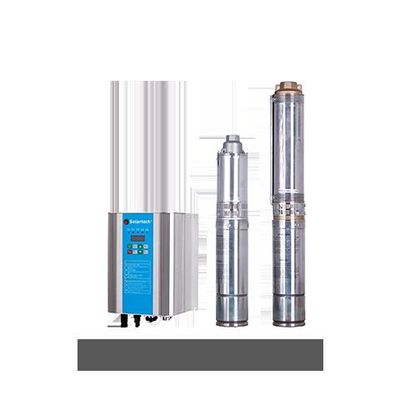

Solartech Permanent Magnet Solar Pump consists of a PM solar pumping inverter and a permanent magnet pump.
Most popular related searches
solar pump
solar pump inverter
solar pumping inverter
magnetic pump
helical rotor pump system
solar pumping system
solar pump system
rare earth magnet
rare earth
asynchronous motor
SPM solar pump
Solartech Permanent Magnet Solar Pump consists of a PM solar pumping inverter and a permanent magnet pump.
PM Solar Pumping Inverter adopts patented dynamic VI maximum power tracking (MPPT) algorithm, which has high reliability and an up to 98% conversion efficiency. The permanent magnet pump adopts permanent magnet (DC brushless) motor excited by rare earth permanent magnet material without excitation coil or excitation current.
Compared with the same capacity asynchronous motor, its efficiency is significantly improved by 5%-20%, which achieves a strong competitive advantage of high efficiency with simple structure.
-
Power Range 300 - 1500W
-
Voltage Grade 36V, 48V 110V
-
Advance Function support PAYGO, remote monitoring
- Higher operation efficiency and lighter weight due to adoption of high efficient permanent magnet (DC brushless) motor.
- Less solar panels, high overall efficiency.
- Optional helical rotor pump for high lift and centrifugal pump for big flow.
- High reliability due to uses of high-performance semiconductor devices in main circuit, up to 98% conversion efficiency of inverter.
- Patented dynamic VI maximum power tracking (MPPT) algorithm to achieve fast response, good stability and 99% MPPT efficiency.
- With the installment encryption function, provides a solution for the installment payment of the solar pumping system purchasing and installation.
- Head: 1 – 178m
- Water Flow: 1 – 125 m³/day
