G-Apex, Brand of Taiwan Yun Lin Applied Materials Co., Ltd.

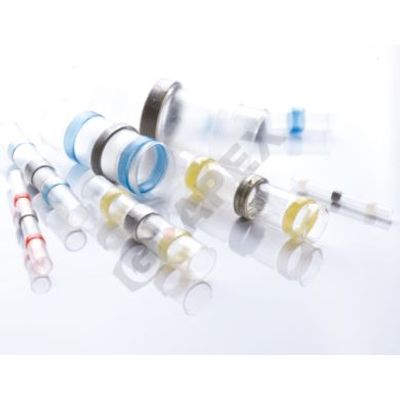

G-Apex - Model GAST-R -Solder Sleeve Wire Splices for Wire Protection and Connection
The GAST-R Solder Sleeve Wire Splices are designed to provide reliable heat shrink protection for electrical connections while simplifying the installation process and reducing costs. Featuring a dual-layer construction, the outer layer consists of a transparent polyolefin heat shrink tube, while the inner layer incorporates a colored, dimension-specific hot melt rubber ring and an eco-friendly tin ring. This design ensures secure soldering to cables and effective sealing at both ends via the hot melt adhesive ring. The entire connection protection is achieved through a single heating process, facilitating ease of installation. Available in standard colors such as white, yellow, red, and blue, the splices operate optimally up to 125℃, making them suitable for a wide range of electrical interconnect applications.Most popular related searches
Outer layer of GAST-R is a transparent polyolefin heat shrink tube, and the inner layer is made of a colored, the easy-to-identify dimension hot melt rubber ring and an environmentally friendly tin ring. Designs of this product is heat shrinkable tube protection for the outer layer of wires, the tin ring welding to the cables, and the sealing of the hot melt adhesive ring on both ends of heat-shrink tube. All connection protection can be completed in one heating process, a simple construction method can reduce installation cost.
- Continuous operating temperature: -55°C - 125°C
- Minimum shrink temperature: 80°C
- Full recovery temperature: Above 110eC
- Full melting temperature of solder: 160eC
- Shrink ratio: 2:1
- Hot melt adhesive provides waterproof function
- The color of hot melt adhesive indicates the applicable dimension
- Solder sleeve design makes the soldering process easier
- Compliance with RoHS
