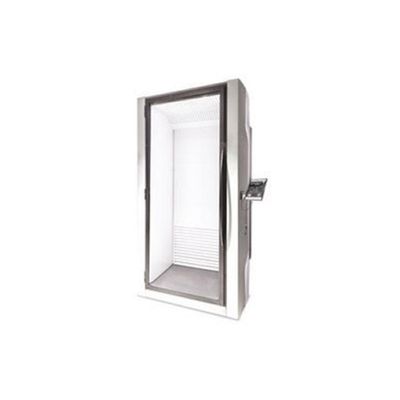

CRYO ECO - Sole Electric Whole Body Cabin

• AIR COOLING or WATER COOLING,
• GLAZED DOOR or FULL GLAZED DOOR

• Require single phase
• Cool-down and drying programs
• Minimum 6 process per hour down to -110°C / 166°F
• 100% electrical technology
• Fully made out of steel for an enhanced durability
• Section with glass to keep on being in contact with the patient
• Touch screen of control
• LED inside and outside of the cabin
• Loudspeaker inside the cabin to be connected with the customer and propose listening music
• Resistive heating for providing unfreezing and drying
• Cabin conditioned in two packages for easing the transportation
• Available colours : grey, green, white, blue, a larger choice in option
• Remote module for controlling diagnostic and maintenance Module for remote trouble shooting from the equipment manufacturer

EXTERNAL DIMENSIONS

• Length: 1 252 mm
• Width: 1 522 mm
• Height: 2 262 mm
• Weight: 600 kgs

INTERNAL DIMENSIONS

• Width : 840 mm
• Depth : 660 mm
• Height : 2 000 mm

TECHNICAL FEATURES

• 4 hours to reach -110°C (daily Programming)
• Nominal power: 5,5 kw
• Power supply: 230V
