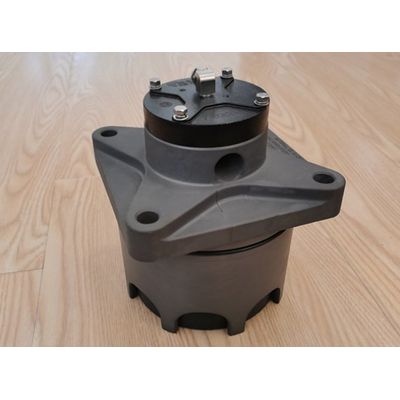

Optipow - Model 135 -Soleniod Valve
Optipow135 Diaphragm 4 Quot Aluminum Pulse Soleniod Valve.
- Min. Order: 1
- Optipow Valve Capacity: 200000 pcs/year
- Payment Terms: TT, LC, D/P, Western Union, Paypal, Personal Account...
- Transport Package: Special Foam Box Packing and Wooden Box for Optipow Valve
- Inventory: 20000sets of Optipow Valve and 1000000pieces of Parts
- Delivery Date: In time
- Optipow Valve Serves: Changing instead of Repairing
- Optipow Valve Origin: China
OPTIPOW VALVE INTRODUCTION
The compact pulse valve for the Optipulse fabric filters of different types.Alstom Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd.
- is a result of many years of experiences within the fabric filter technology area.
- is quick acting with high efficiency.
- has small dimensions, the figure after the name stands fir the diameter of the plunger.
- is primarily designed to be used in combination with circular pressure tank.
- is easy to install and make service to.
- has a very robust design, designed for normal use at air pressure up to 600kPa (6bar).
- Normal max operating temperature (compact pulse valve) 50°C.
FABPAC Fabric Filter
FABPAC and ELPAC filters are Alstoms standardized modular filters, that remove efficient Harmful particles from the flue gases. Qingdao Star Machine Technology Co.,ltd. has delivered dozens million to all over the world of standardized modular electrostatic precipitators (ELPAC) and fabric filters (FABPAC) plus hundreds of tailored and customized electrostatic precipitators and fabric filters for power plants and industrial plants, especially for the pulp and paper industry and the iron & steel industry.

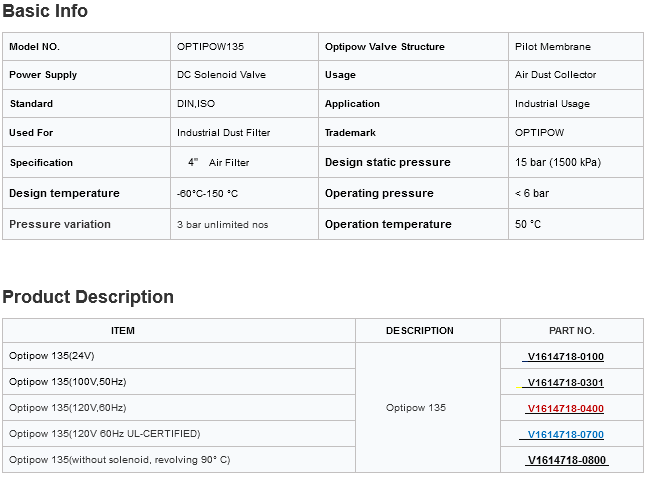

OPTIPOW SPECIFICATION AND SPARE PARTS LIST
- Air Filter OPTIPOW135
- OPTIPOW 135 (24V) V1614718-0100
- OPTIPOW 135 (100V, 50 Hz) V1614718-0301
- OPTIPOW 135 (120V 60Hz) V1614718-0400
- OPTIPOW 135 (120V 60Hz UL-CERTIFIED) V1614718-0700
- OPTIPOW 135 (without solenoid, revolving 90° C) V1614718-0800 -
- O-Ring (Fluor rubber 64,5 x 3) 8003-5573
- O-Ring (Nitril 70SH 64,5 x 3) 2136-1422
- O-Ring (114,5x3) 2136-1441
- Plate V3630524-0100
- Round washer (SS3576-5-200HV FE/ZN25) 4903-2146 -
- Solenoid valve (24 V DC ) V3611471-0100
- Solenoid valve (100 V, 60 Hz) V3611471-0201
- Solenoid valve (110 V, 50 Hz) V3611471-0300
- Solenoid valve (110 V, 60 Hz) V3611471-0200
- Solenoid valve (120 V, 60 Hz) V3611471-0400
- Solenoid valve (120 V, 60 Hz-
We provide you with tailor-made air pollution control solutions focusing on reduced emissions and improved performance and efficiency to meet changing market conditions and comply with asset strategies. Our offering covers the entire flue gas line, ranging from particulate control, dry and wet scrubbers, to multi-pollutant equipment for industrial, waste-to-energy and power generation plants.
Starmachinechina air pollution control products meet the requirements for complying with the world’s strictest emissions legislation, the desire for low consumption of additives, the need for minimal residues, and the installation simplicity of a compact design. Quite often, our systems are delivered turnkey to ensure single-source accountability and efficiency.
Cutting-edge engineering tools and global R&D collaboration with a network of recognized partners and universities lay the foundation for our work. Early identification of each client’s needs help Starmachinechina make a long-term contribution to clean air and a clean environment.
Alstom Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd.
Alstom Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd. Our OPTIPOW Air Cleaning valve service life can reach 1,000,000 times. Low temperature resistance -60 ° C and high temperature 150 ° C. Widely used in thermal power plant air purification and dust removal, glass factory dust removal, laboratory dust removal, and other industrial dust removal. We have a sales system and after-sales service system all over the world. Our goal is to continuously improve quality and continuously reduce costs, till customer satisfaction.
We have a global sales network and service system of OPTIPOW air cleaning valve. There are more than 150 distributors and business cooperative partners in more than 30 countries, including Vietnam, Korea, Thailand, Bangladesh, Singapore, Philippines, Malaysia, Russia, Kazakhstan, Uzbekistan, Ukraine, Iran, Saudi Arabia, Chile, Brazil, Canada, the United States, Mexico, Poland and other countries. "Honesty, efficiency, coordination, innovation" is our corporate culture. "First class quality, reasonable price and timely service" is is our company`s unremitting pursuit.
