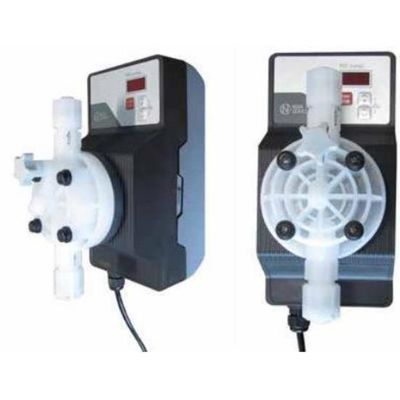

FG Pumps - Model FGS NSP-NSE Series -Solenoid Dosing Pumps
Solenoid Dosing Pumps Wall Installation Nova NSP Series, Professional Line. Bilingual interface (Italian-English). Intuitive setup with new user interface and three level password protection. Storage of configuration and calibration data in internal memory for at least 10 years. Counters of liters injected, working hours and membrane blows. Service menu. “Autoset” function for quick configuration. "Reset" function to restore factory settings. Multifunctional connector for external consent / pulse / mA inputs and input for level sensor.
- Optional “Flow Control” input for injection flow control and self priming function
- Optional output: alarm (NO/NC) or pulse repetition relay
- Optional RS485 serial port with galvanic isolation and Modbus RTU communication protocol
- "Timer" option for programming doses on established days and times, with management of 14 daily events or 2 daily events in 7 days, automatic update of winter/summer time
- Internal overheating / safety control system
- Anti-leakage system towards the magnet
- UL V-0 flame rated housing
- IP65 rated housing; dimensions: 226 x 115 x 175 mm (wiring excluded)
- Power supply, standard: 230 V~ 50/60 Hz (cord with Schuko plug; other types available); on request: 115 V~ 50/60 Hz (cable with plug type B)
- These pumps are supplied with a standard accessory kit (foot filter; injection valve; hoses for suction, delivery and purge lines), connection kit, wall bracket, cables with M8 connector for input/output wiring.

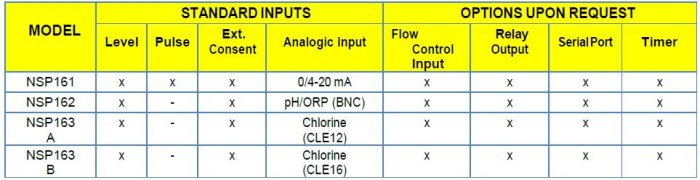

Model: Description
NSP161
Multifunctional pump with pulse / external consent / mA inputs; command from pulse signal or analog input, batch mode, duty cycles
NSP162
Pump with built-in pH/ORP meter and electrode input on BNC connector
NSP163A
Pump with built-in chlorine meter and input for CLE11 / CLE12 cell available in M8 connector
NSP163B
Pump with built-in chlorine meter and input for CLE16 cell available in M8 connector
