Fluidesa

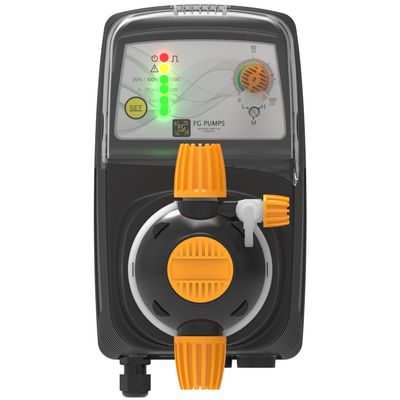

FG Pumps - Model FGS Series P M70 -Solenoid-Operated Analog Dosing Pump
FromFluidesa
Solenoid-operated analog dosing pump. Constant or proportional dosage mode. Reinforced PP casing, suitable for aggressive work environments. Power supply range 100÷240Vac - 50/60Hz. Predisposition for level probe. IP65 degree of protection. Wall mounting bracket supplied with the installation kit.
Most popular related searches
solenoid-operated analog dosing pump
pulse emitting water meter
dosing pump
electromagnetic diaphragm pump
solenoid dosing pump
ball valve
protective wall
level probe
water metering
ceramic valve
- Percentage adjustment of the stroke rate.
- Flow adjustment 0-100% or 0-20%.
- Mode proportional to a 4-20mA signal.
- Proportional mode to a pulse emitting water meter:
- 1xN with adjustable N from 1 ... 10
- 1:N with adjustable N from 1 ... 1000
- 3 different selectable performance settings.
Item: Standard version
- Flow range
- 1.8 LPH @ 20 BAR
- 14 LPH @ 1 BAR
- Single-phase: 220 V
- Power: 16 W
- Stroke/min: 75 to 180
- Head: PVDF
- Casing: PP
- Diaphragm: PTFE
- Balls: Ceramic
- Valve body: 1/2” – PVDF
- O-rings: Viton
- Injection Ball Valve (Spring): Hastelloy-PTFE
- Injection / Attack Fitting: PVDF - 4x6
- Foot valve: PVDF
- Power: 120V/60Hz; 230V/50Hz
