JJ-BCN - Model EEXDIICT 6 - Solenoid ...

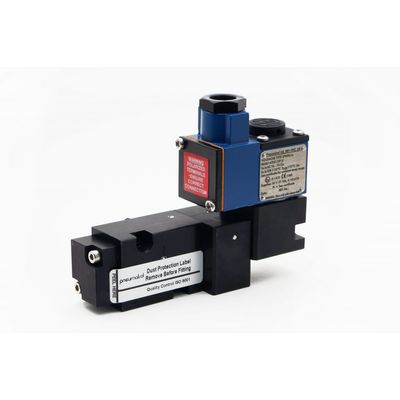

JJ-BCN - Model EEXDIICT 6 -Solenoid Valve

FromJ.J. BCN Internacional S.A

SHARE

Solenoid valve. It can be made of aluminum, stainless steel or brass body. Solenoid valve designed for direct mounting onto 1/4 turn pneumatically operated valve actuators meeting ‘NAMUR’ standard fixing dimensions. Hazardous area approved pilot operators (ExnA, Exm, Exme, Exd and Exia) are available with various international approvals – ATEX, IECEx, FM, GOST CU TR (Russia) and NEPSI (China).

Most popular related searches

pneumatically operated valve

pneumatic solenoid valve

pneumatic valve

stainless steel solenoid valve

pneumatic actuator valve

spring return actuator

Interchangeable CNOMO interface coil units, including various hazardous area options
Integrated Exhaust to Spring (ETS) feature in 3/2 position
Top face air connection
1/4"BSP mains air connection and 1/8"BSP exhaust ports, also available in NPT ports
Single coil spring return function or double coil stay put function
Pilot exhaust dust caps fitted as standard
The valve is fitted with a change-over plate that allows the valve to be converted from 3/2 to 5/2 function quickly and easily for spring return and double acting actuators
SIL2 on energising, SIL3 on de-energising when used in 3/2 mode
