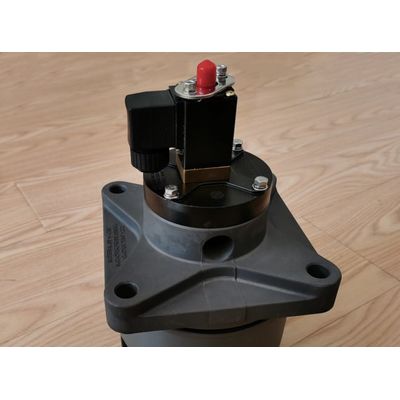

Optipow - Model Jet Pulse -Solenoid Valve
Volume A connected to the pressure tank, via the slot between the valve house and the plunger. There is same pressure in the volume A as in the pressure tank. Due to the larger pressurised surface of the plunger in volume A, the plunger is pressed towards the pulse pipe and seals between the pressure tank and the pulse pipe. The volume B is via the solenoid valve connected to the pilot air. The area is larger on pilot air side so the pilot membrane is pressed down towards the top of the valve house and seals off the volume A from the ambient.
- Min. Order: 1
- Valve Structure: Pilot Membrane Structure
- Warranty Period: Two Years or 100000 Times
- Warranty Mode:: Replacement Rather than Repair
- Service: 7*24 hours on line
- Paymet Item: L/C, T/T, D/P, Western Union, Paypal, Money Gram
- Transport Package: According to Customer Requirements
- Delivery time: Any Time
The compact pulse valve for the Optipulse fabric filters of different types. is a result of many years of experiences within the fabric filter technology area. is quick acting with high efficiency. has small dimensions, the figure after the name stands fir the diameter of the plunger is primarily designed to be used in combination with circular pressure tank is easy to install and make service to.
has a very robust design, designed for normal use at air pressure up to 600kPa (6bar). Normal max operating temperature (compact pulse valve) 50°C.
OPTIPOW 135 (24V) V1614718-0100
OPTIPOW 135 (100V, 50 Hz) V1614718-0301
- OPTIPOW 135 (120V 60Hz) V1614718-0400
- OPTIPOW 135 (120V 60Hz UL-CERTIFIED) V1614718-0700
OPTIPOW 135 (without solenoid, revolving 90° C) V1614718-0800
- Membrane V4549902-0100
- O-Ring (Fluor rubber 64,5 x 3) 8003-5573
- O-Ring (Nitril 70SH 64,5 x 3) 2136-1422
- O-Ring (114,5x3) 2136-1441
- Pilot cover V3630501-0100
- Plate V3630524-0100
- Plunger V3629022-0100
- Round washer (SS3576-5-200HV FE/ZN25) 4903-2146 -
- Rubber disc V3640660-0100
- Solenoid valve (24 V DC ) V3611471-0100
- Solenoid valve (100 V, 60 Hz) V3611471-0201
- Solenoid valve (110 V, 50 Hz) V3611471-0300
- Solenoid valve (110 V, 60 Hz) V3611471-0200
- Solenoid valve (120 V, 60 Hz) V3611471-0400
- Solenoid valve (120 V, 60 Hz-
- Piston type pulse valve V1585320
- Piston type pulse valve V3630501
OPTIPOW 105 (24 VDC ) V1617803-0100
- OPTIPOW 105 (110V 60 Hz, 100V 50/60Hz) V1617803-0200
- OPTIPOW 105 (110V, 50 Hz) V1617803-0300
- OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400
- OPTIPOW 105 (220V, 50 Hz) V1617803-0500
- OPTIPOW 105 (UR-CERTIFIED 120V,60HZ) V1617803-0600
- OPTIPOW 105 (without solenoid, revolving 90° C) V1617803-0800
- Coupling set V3592382-0000
- Membrane V4549902-0100
- O-Ring (Fluor rubber 64,5 x 3) 8003-5573
- O-Ring (Nitril 70SH 64,5 x 3) 2136-1422
- O-Ring (114,5 x 3) 2136-1435
- Pilot cover V3630501-0100
- Plate V3630524-0100
- Plunger V3630527-0100
- Round washer (SS3576-10-200HV FE/ZN45 Erection details) 4903-2173
- Rubber disc V3630530-0100
- Rubber disc V3640661-0100
- Screw (ISO4762-M10x30-8.8 ZN8C, Erection details) 2034-2495
- Solenoid valve (24 V DC) V3611471-0100
- Solenoid valve (100 V, 60 Hz) V3611471-0201
- Solenoid valve (110 V, 50 Hz) V3611471-0300
- Solenoid valve (110 V, 60 Hz) V3611471-0200
- Solenoid valve (120 V, 60 Hz) V3611471-0400
- Solenoid valve (120 V, 60 Hz - UL certified) V3640645-0200
- Solenoid valve (230 V, 50 Hz) V3611471-0500
