RPE - Model R Series -Solenoid Valve Dispenser
FromRPE S.r.l.

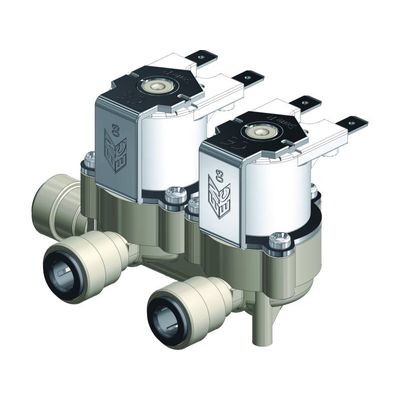

Series R Dispenser: 2/2 solenoid valve, dn 10mm, servo-assisted, NC (normally closed), 2 inputs, 1 output. Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version.
Most popular related searches
solenoid valve
solenoid valve dispenser
water dispensing
water dispenser
drinking water
sparkling water dispenser
drinking water regulations
water filter
water regulations
Installation
- in any position with fixing screws
Applications
- Sparkling and mineral water dispensers
- Professional filtering machine
- Ice machines
- Coffee machines
Physical characteristic
- Valve body PA 66 - 30% GF
- Diaphragm: NBR, LSR, EPDM
- Core: Stainless steel
- Coils: F Class (155°)
- Assembly Self-tapping screws
Working specifications
- Working pressure 0,2 - 10 bar
- Room temperature: Tu 60 °C
- Fluid temperature: Tm 25 °C - Tm 60° C - ED 100%
- Tm 90 °C (3 ON - 5 OFF)
- Orifice: DN 10 mm
- Control Normally Closed (NC);
- Normally Open (NO);
- Latching8LC)
- Fluid direction Unidirectional
- KV: 7,39 L/min
ELectrical Connections
- Faston 6,3 x 0,8 mm
- Unipolar wires max 5000 mm
- Bipolar wires max 5000 mm
MOQ
- 36 pcs
