Solfas - Model LI-Series -High Current Inductance Analysers
The LI-Series High Current Inductance Analysers from Solfas are designed to accurately determine the inductance properties of chokes across a broad current spectrum utilizing a single measurement approach. This series is notable for its ability to test chokes larger than the device itself, making it particularly well-suited for mobile applications. The devices are available in three versions, each varying in energy capacity and maximum current, yet maintaining uniform functionality and software across all models. These analysers facilitate 3-phase choke testing using simple reconnection or auto-switching via the 3-phase extension unit, managed by the intuitive LI software. The software optimizes the testing sequence and provides comprehensive evaluations. Integration capabilities allow the device to connect via USB or Ethernet and incorporate seamlessly into existing systems or safety circuits, supporting both standalone and system-integrated operations.LI-Series, The High Current Inductance Analysers with Pulse Voltage Source
Our LI analysers offers the possibility to identify the inductance characteristic of a choke over a wide current range with only one measurement. This method easily allows to verify the inductance and saturation behavior as well as the resistance.
High Power Densitity
Compared to other high current inductance measuring methods, the size and the weight are significantly lower. The advantage of the LI Series is that chokes can be tested which are larger than the device itself. Therefore, it is excellently suitable for mobile use.
Scalable Performance
The LI units are available in three versions. They differ in the available energy and the maximum current, but have the same functions and software.
The right device is always available for your requirements.

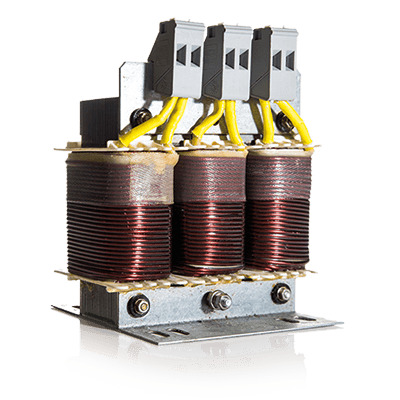

3-Phase Choke Testing
Three-phase chokes can, of course, also be tested. This is possible with manual reconnection or automatic switching through our 3-phase extension unit.
Our software ensures the right test sequence and the simple evaluation.
Connectivity and Integration
The device is controlled by our LI software. The communication between the PC and the device can be done via USB or Ethernet. So, you can use the device separately or integrate it into a system. Additionally, it can be integrated into existing safety circuits and can be operated externally. This allows you to extend an existing test field simply without any limitations.
Our Software provides an easy and intuitive handling. You can enter the rated values of the choke and the maximum current. The necessary test voltage is calculated automatically. After the measurement is finished you will see the measurement curves of voltage, current and inductance. The winding resistance is measured too.
You can save the results, open an other measurement as a reference or verificate the results with the aid of limit values. There are many more features. See below for the main features.
Also, the software can generate a protocol from the measurement data. Here is an example:
In addition to the simple and intuitive operation, we have implemented a lot of features to make the software better. Here are the main features.
