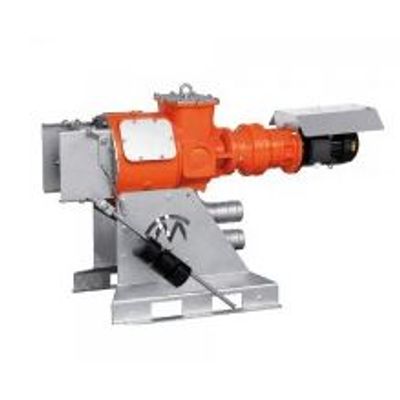

Cri-Man - Model SM260 Mini -Solid-Liquid Separators
This equipment is fit for the solid-liquid separation for agriculture, industry and sewage systems.
Most popular related searches
solid-liquid separator
solid-liquid separation
liquid separation
solids separation
green bedding separator
planetary gearing
sewage system
sealing system
waste treatment
waste processing
Why Separate?
- Separating solids from liquid is the first step in any waste treatment process.
- Dairy Farms can recycle manure solids into bedding.
- Separated solids can be composted or reused in other areas.
- When you separate the becomes easy to mix and pump.
- Manure storage capacity can increase by 20%-30%.
- Reduce Phosphorus by as much as 30%.
For medium-sized barns (300 – 800 head)
- Motor power 3 kW
- Capacity 4,5 – 18 m³/h
- % Dry matter up to 30%
- Screw in AISI 304 treated stainless steel
- Standard Screen in AISI 316 stainless steel
- Planetary gear box
- Sealing system with three lip seals (mechanical seal on request)
- Capacity: 4,5 – 18 m³/h (20 – 79 US gpm)
- Rpm: 20 (50Hz) (24 (60Hz))
- Motor power: 3 kW (4 HP)
- Screen mesh: 0,25 – 1 mm (0,01 – 0,04 inches)
- Up to 30% Dry Matter
