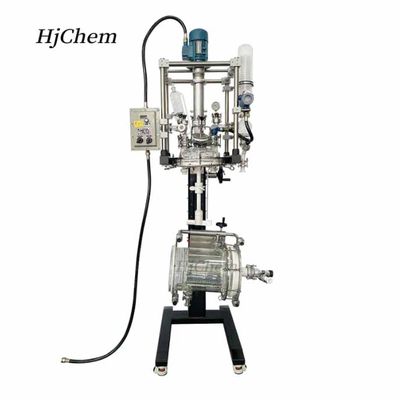

Hjchem - Solid Phase Peptide Synthesis Equipment

1. Volume: 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L, for the small laboratory scale to pilot plant kilo-lab scale.

2. Vessel: Single wall, double wall or triple wall available

3. Working pressure: Full vacuum to 0.05/0.1Mpa

4. Working temperature: -80°C ~ +220°C

5. Wetted parts: Borosilicate glass 3.3, PTFE

6. Filter device: PTFE, glass or stainless-steel, pore size 0.1um to 200um

Solid phase peptide synthesis (SPPS) is a technique for peptide synthesis. It can be defined as a process in which a peptide anchored by its C-terminus to an insoluble polymer is assembled by the successive addition of the protected amino acids constituting its sequence.

The “classical” reactor for SPPS merely consists of a cylindrical vessel with a fritted disc and a removable lid equipped with a mechanical stirrer. The resin may also be stirred by bubbling nitrogen through, however more elaborate equipment is required. For rapid small scale synthesis a small fritted glass funnel is sufficient. Oxygen and moisture need not be strictly excluded, but the cleavage of the Nα protecting group should be performed under a hood as to avoid exposure to piperidine (Fmoc cleavage) or TFA (Boc cleavage).

1. Full jacket design to ensure small volume of material can be evenly heated and cooled.

2. Strong motor power to make sure crack the cakes.

3. Reactor vessel is liftable and tiltable for easy cleaning and unloading resin.

4. 3-way discharge valve allows bubbling nitrogen.

For more detailed information, please visit us:

Solid Phase Peptide Synthesis Equipment

https://njhjchem.com/product/glass-nutsche-filters/solid-phase-peptide-synthesis-equipment/
