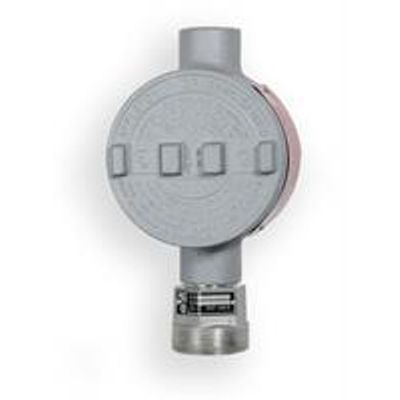

AMC - Model 340 Series -Solid State Sensor/Transmitter
A robust line of sensor/transmitters using proven solid state sensors, the AMC-340 series provides durability and exceptional sensor life in ammonia, combustible gas and refrigerant applications. The AMC-340 includes a standard explosion proof enclosure, and is an ideal leak detector for harsher environments, or when there is a high background level of gas.
Most popular related searches
- Detectable Gas: Combustibles, Solvents, VOCs and others
- Range: Available from 0-100 ppm to 0-50% LEL
- Signal Output: 4-20 mA
- Sensor Type: Metal Oxide Semiconductor
- Enclosure: As identified below
- Voltage Requirement: 12-26 VDC with 250 ohm load
- Installation Wiring: Three conductor shielded cable
- Repeatability: 10% of full scale
- Response Time: 50% response in less than 10 seconds
- Operating Temperature : -40°C to +40°C continuous
- Operating Humidity : 0-99% R.H. Non Condensing
- Sensor Life Expectancy: 7-10 years typical
- Sensor Element Warranty : One year
