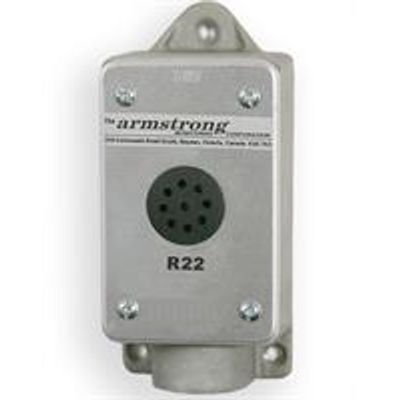

AMC - Model 3701 -Solid State Sensor/Transmitter
With unmatched sensor life thanks to their proven solid state sensors, the AMC-3701 series provides an economical option for ammonia, VOC, combustible gas and refrigerant applications. The AMC-3701 includes a standard cast aluminum enclosure, and is ideal as a broad specturm leak detector , or when there is there is typically some level of background gas.
Most popular related searches
- Detectable Gas: See Below
- Range: See Below
- Signal Output: 4-20 mA
- Sensor Type: Metal Oxide Semiconductor
- Enclosure: Standard cast aluminium
- Voltage Requirement: 12-26 VDC
- Installation Wiring: Three conductor shielded cable
- Sensitivity: Very little change over time
- Repeatability: 8% of full scale
- Response Time: 50% response in less than 10 seconds
- Operating Temperature : -0°C to +40°C continuous
- Operating Humidity : 0-99% R.H. Non Condensing
- Sensor Life Expectancy: 10 years typical
- Sensor Element Warranty : One Year
