SOLTEC - Model BN Series -Horizontal Progressive Cavity Single Screw Pumps
Horizontal Progressive Cavity Single Screw Pumps of BN serie present the widest group of SOLTEC products which is used in almost all industries. The using of this type of equipment provides reliable and economic work with viscous abrasive liquid substances. This series of equipment allows the broad range usage of different configurations, additional options and automatic systems that gives the possibility to correspond any requirements and tasks of modern technological processes.
SOLTEC Single Screw Eccentric Progressive Cavity Pumps of serie BN are most required in the fields connected with reliable and economic pumping of viscous, polluted, multiphased media, media with different inclusions and considerable gas component.
- productive capacity from 0.1 to 200 m3/h
- pressure from 4 to 24 bar
- various options
The variant of pump with directly flange-mounted motor - reducer
Applied in units with pressure to 12 bar including. In this composition the pump has a сompact form, easily installed and serviced.
Additional Shredder - Maсerator
A device for premincing of large solid particles that helps the conveying of the pumping liquid.
The heating system of flow part
The necessary option while working with rapidly solidified substances. It can be made as a hollow sealed sleeve for flowing of heating media (steam, hot water etc.), or as an electrical heating device.
The Automation systems
The Installation of different automation systems of pump work control is possible including: control of drive shaft turns, protection system “dry run”, flowmeter, manometer etc.

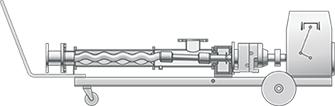

The mobile pump with internal combustion drive
Provides autonomous and operational activity of pump device disregarding the place of its installation and electricity supply location.
